EcoSmart

EcoSmart - Flex Fireplace 68BY.BXL - Bay - Black

EcoSmart - Flex Fireplace 68BY.BXL - Bay - Black

Trade Enquiries
Regular price £4,996.00 GBP
Regular price £6,245.00 GBP Sale price £4,996.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Burner colour

EcoSmart - Flex Fireplace 68BY.BXL - Bay - Black

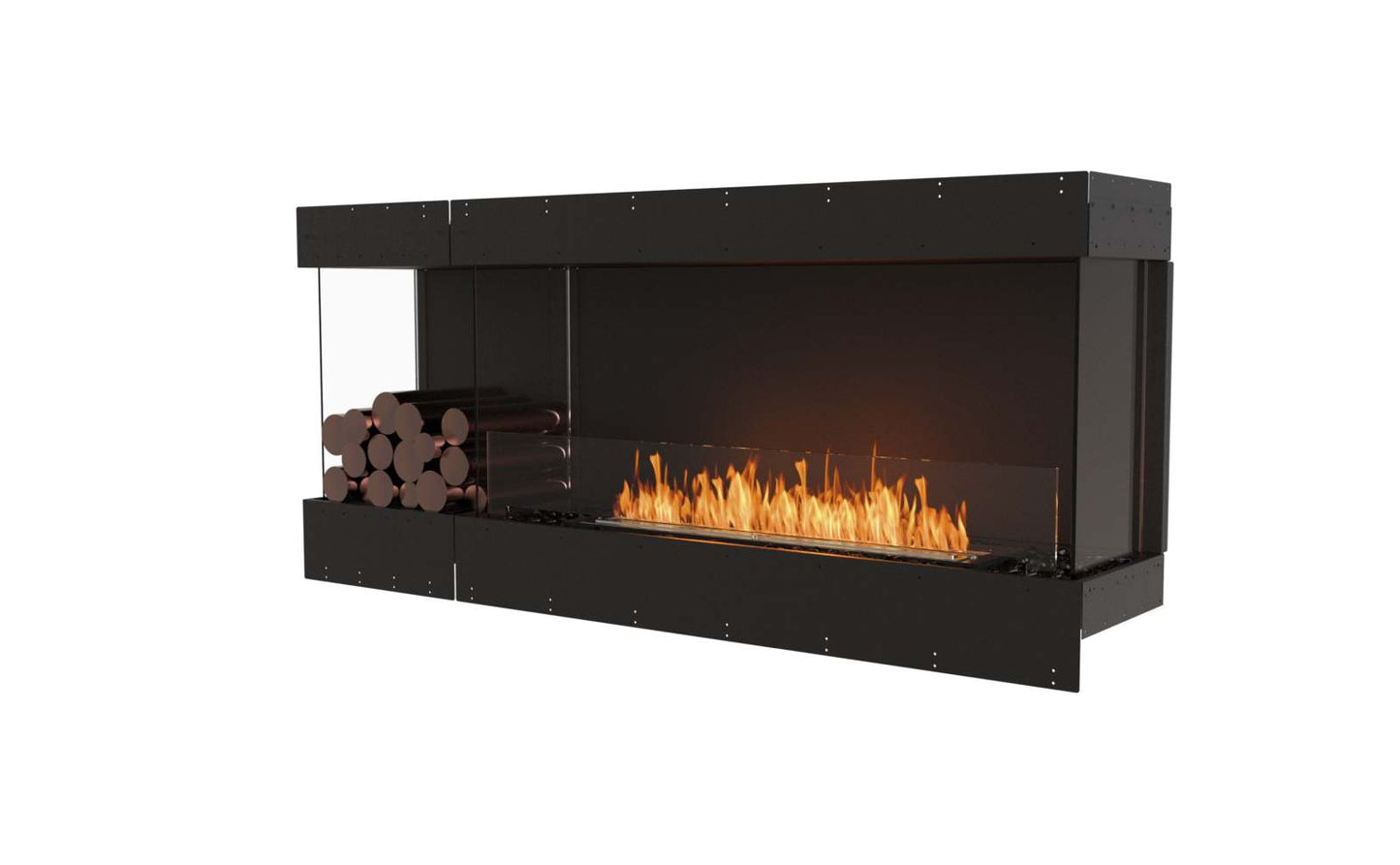

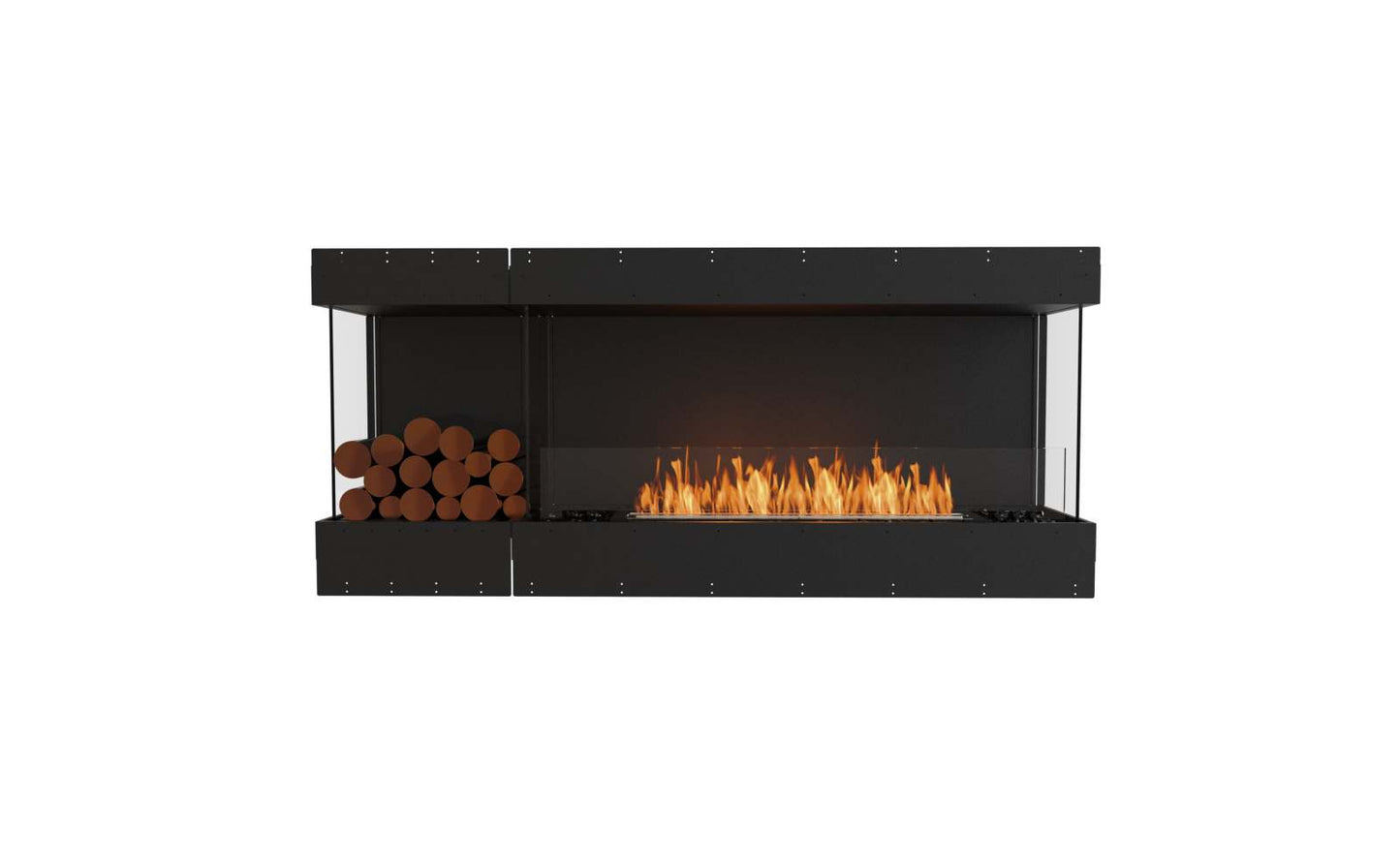

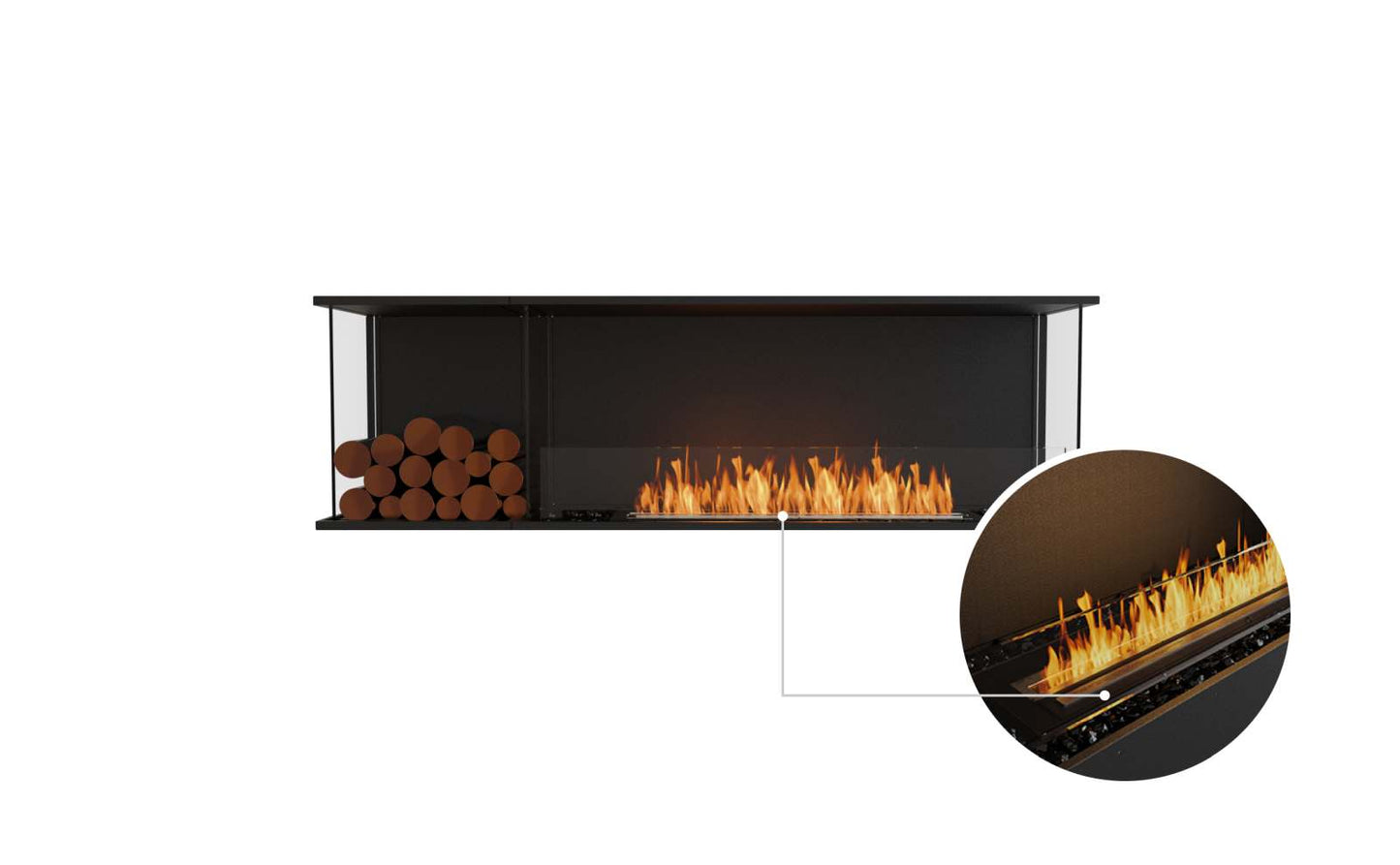

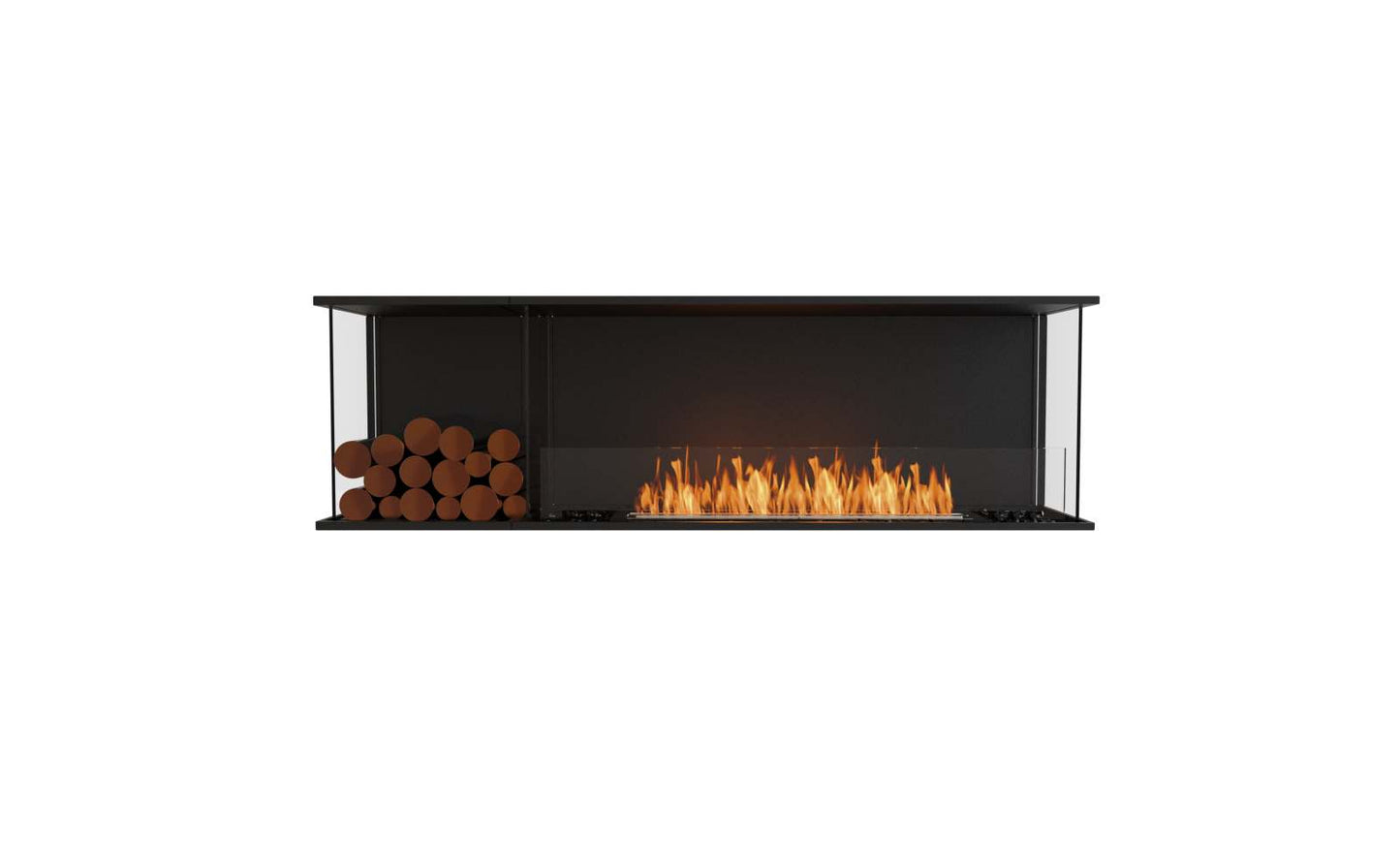

The Bay Fireplace Insert is designed for single room installation and features three open sides that enable the hypnotic flame to be viewed from the front and both left and right sides, providing an alluring focal point from multiple vantage points. The Flex Bay fireboxes are ideal for commercial spaces like restaurants, bars and cafes, and residential settings where a stunning centrepiece is needed. The Flex 68BY.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox. One of the most popular of the XL Series burners, the XL900 burner delivers a stunning linear flame. With a 9L capacity, this elongated burner can heat up to 60m2, making it ideal for larger residential and hospitality spaces such as open plan restaurants and bars or hotel lobby areas. Efficiency is a key feature of this burner, delivering up to 13 hours of heat generating flame from a single refill.

Bay Fireplaces can be transformed to your liking - customise your fireplace design with a decorative box placed on one or more sides.

Materials

Mild Steel & Toughened Glass

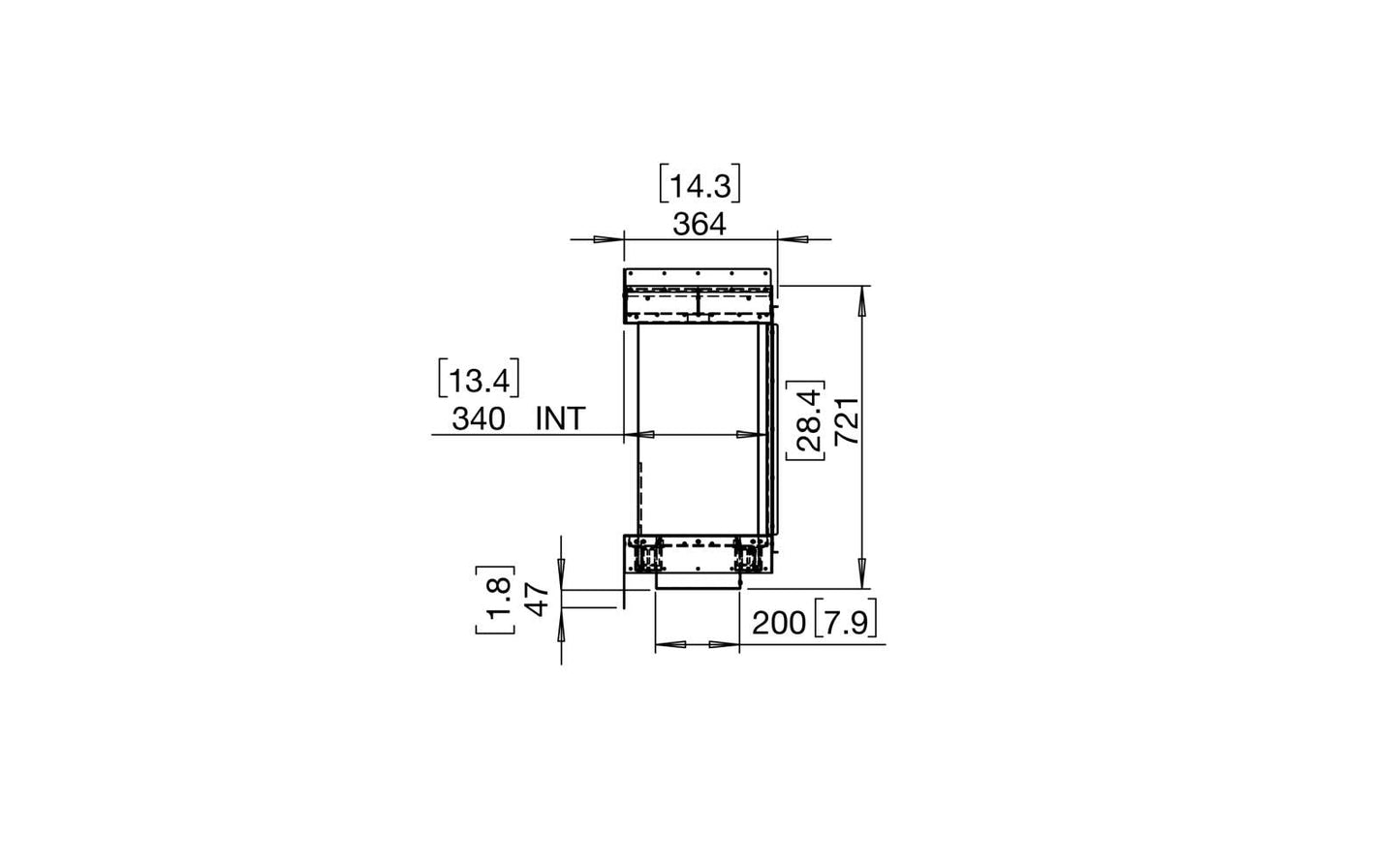

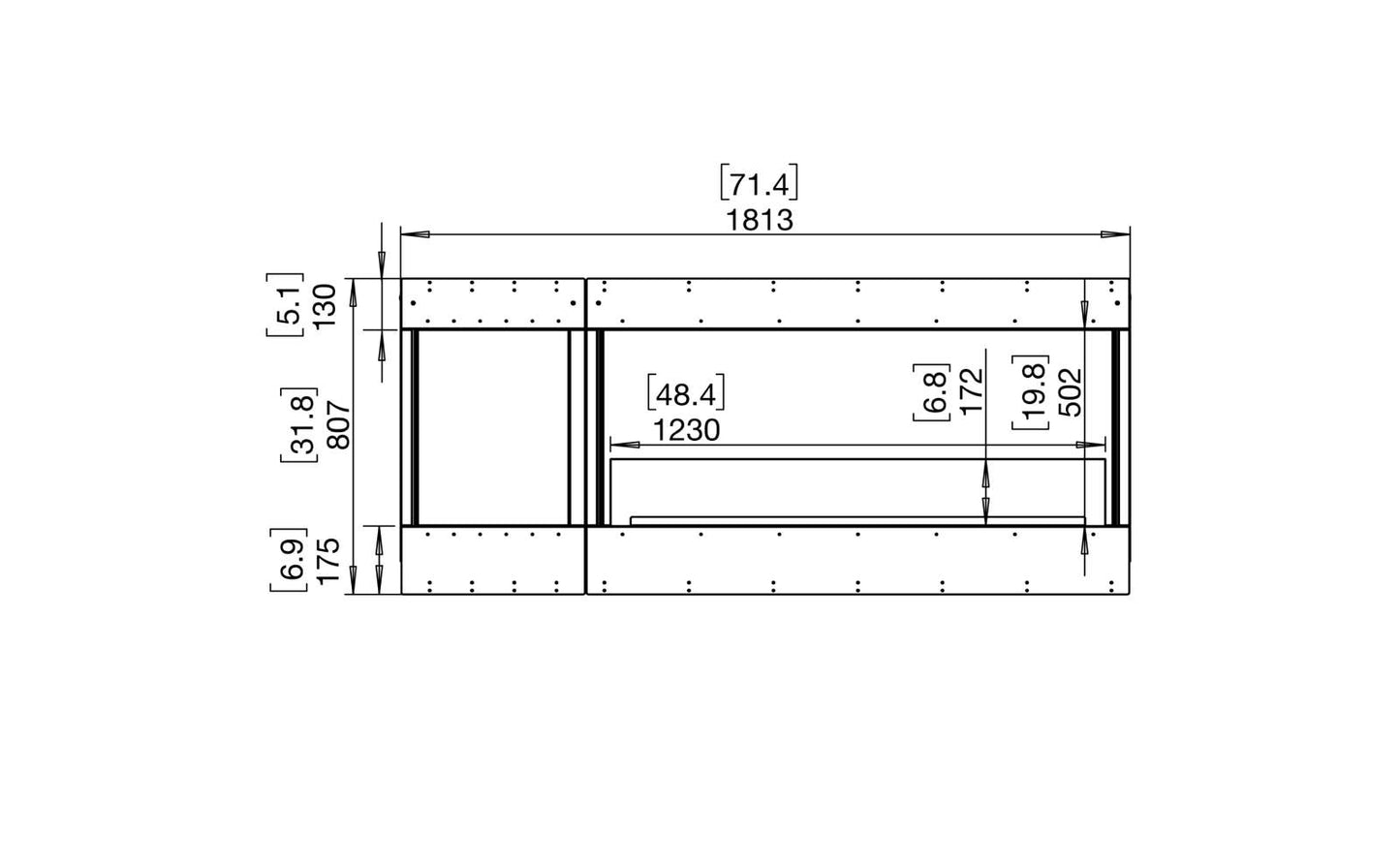

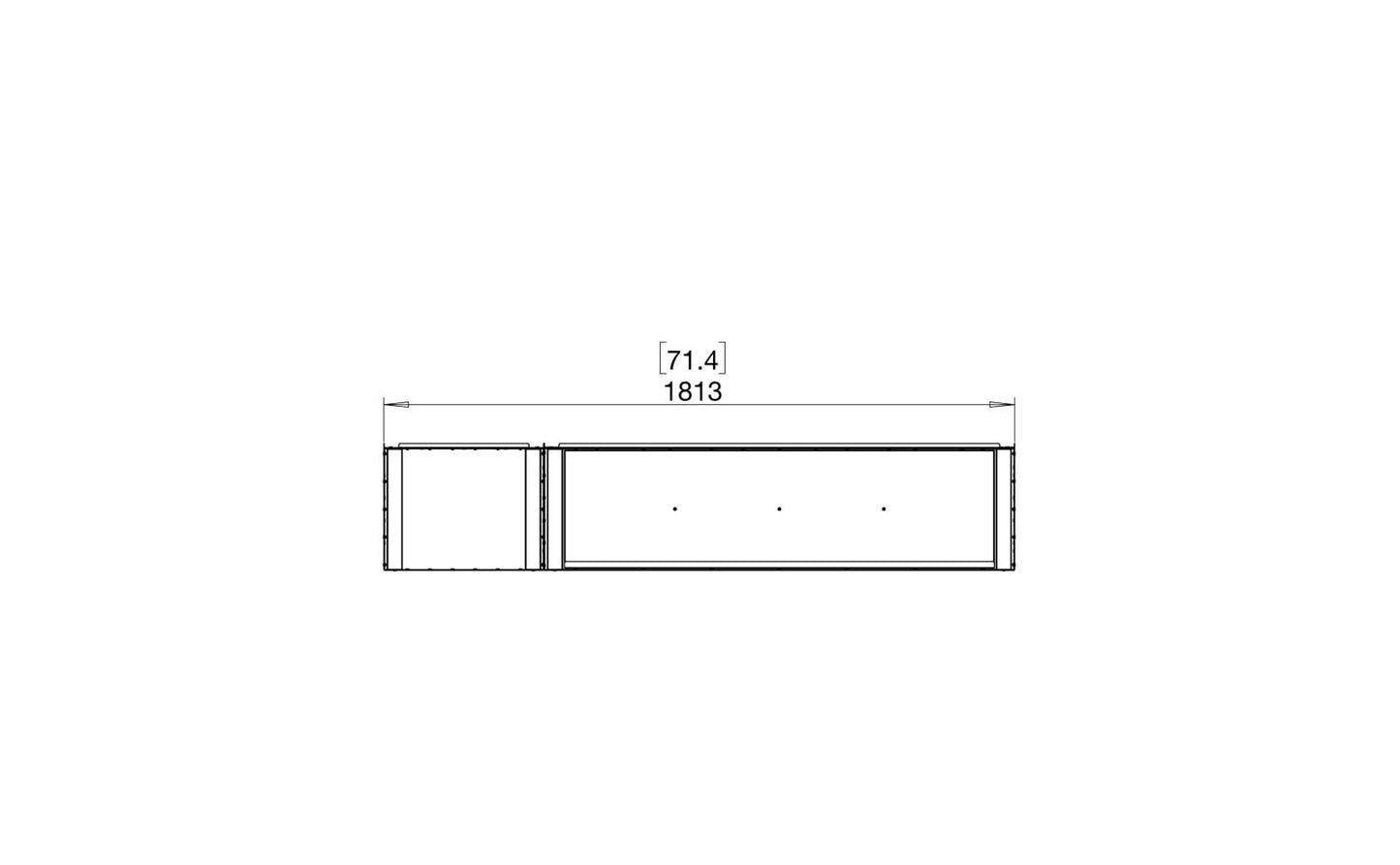

Dimensions & Basic Information

Width: 1813mm

Depth: 365mm

Height: 807mm

Product weight: 95.50kg

Burner weight: 11.90kg

Included burner: ESF.B.XL9

Included Accessories

Fire Lighter

Lighting Rod

Jerry Can 5L

Black Glass Charcoal

XL Baffles

View full details
  • Volume Capacity

    9 L

  • Heats on Average

    60m²

  • Minimal Room Size

    110m³

  • Thermal Output

    15000 BTU/h

  • Burn Time

    8-13h

  • Application

    Indoor & Outdoor

EcoSmart+

Fireplace

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders, architects, interior designers, landscapers and homeowners.

Built to Last a Lifetime

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoor.

Quick and Easy Installation

Requiring virtually no assembly, Flex Fireplaces are designed to be placed into the desired location, safely secured into position, and operated immediately.

Glass Fire Screen/s

The toughened glass fire screen stabilises the flame in windy conditions. The Integrated windscreen sits flush behind the frame.

No Connections

Light up outdoor spaces with a soft, alluring glow - easily and efficiently, without cumbersome connections.

Colours

Available in a timeless black finish, Flex Fireplaces come with Stainless Steel or Black burners.

No Flue, No Chimney, No Vent

Fuelled by clean-burning e-NRG bioethanol, our burners produce a beautiful orange flame without any smoke, soot or ash.

Forefront of Fireplace Technology

Backed by 17 years of research and development, and third-party certification, each model in the Flex series features world-class safety and fuel ignition technologies.

Global Compliance

These models comply with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.

Burners and e-nrg Fuel

Common Q&A's

Do they heat?

EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood-burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU (15m2) - 20,000 BTU’s (65m2).

Are they easy to install?

EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
Burner Installation Guide

  • Build burner cutout from non-combustible materials
  • Insert Top Tray
  • Drop in the burner

Why use an ethanol fireplace?

An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol
fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors.

  • Produces a vibrant orange flame
  • Efficiency over 90%
  • Clean-burning. No smoke, no ash
  • No gas, no electricity, no flue
  • Quick and easy installation

How long will the fuel burn?

This is dependent on the burner and how it’s used, as mentioned, you are burning the vapour that evaporates from the liquid so the size of the mouth of the burner will affect this greatly. A larger more open mouth means more surface area for the ethanol fuel to evaporate from. This is also why most of our burners* will have some type of baffle or sliding baffle to increase burner efficiency; a smaller surface area for fuel to evaporate from means slower evaporation, lower heat output and better fuel efficiency. *Excluding AB3 and VB2 burners.

How do they work?

EcoSmart Ethanol Burners create a flame by burning the vapour that evaporates off of the bioethanol liquid fuel. The fuel is filled through a dedicated filling point where it flows into the fuel reservoir, which is where it is both stored and burned from; this can be seen when you open the lid on the burner.

What’s included when you purchase an EcoSmart ethanol burner?

  • Jerry Can
  • No Spill Nozzle
  • Bottle Adaptor
  • Lighter
  • Lighting Rod
  • Top Tray
  • XL Baffles (XL Burners only)
  • AB8 Efficiency Ring (AB8 Burner only)
  • Extension Spout (AB3 Burner only)

Do they need power or a flue/chimney?

Ethanol fires do not require a chimney, vent, gas line, or electricity and can be installed virtually anywhere - indoors or outdoors. This means they do not require a specialised installer and can be moved from one area to another with relative ease.

How do I fill them?

With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.

  • Step 1 - Remove the bottle nozzle cap and carefully insert into the filling point.
  • Step 2 - Push and hold the green button.The nozzle will automatically stop filling once the reservoir is full.
  • Step 3 - Replace the nozzle cap. To turn the burner off simply close the lid, this will starve the flame of oxygen and extinguish it.
