EcoSmart - Flex Fireplace 42IL - Island - Black
EcoSmart - Flex Fireplace 42IL - Island - Black
EcoSmart - Flex Fireplace 42IL - Island - Black

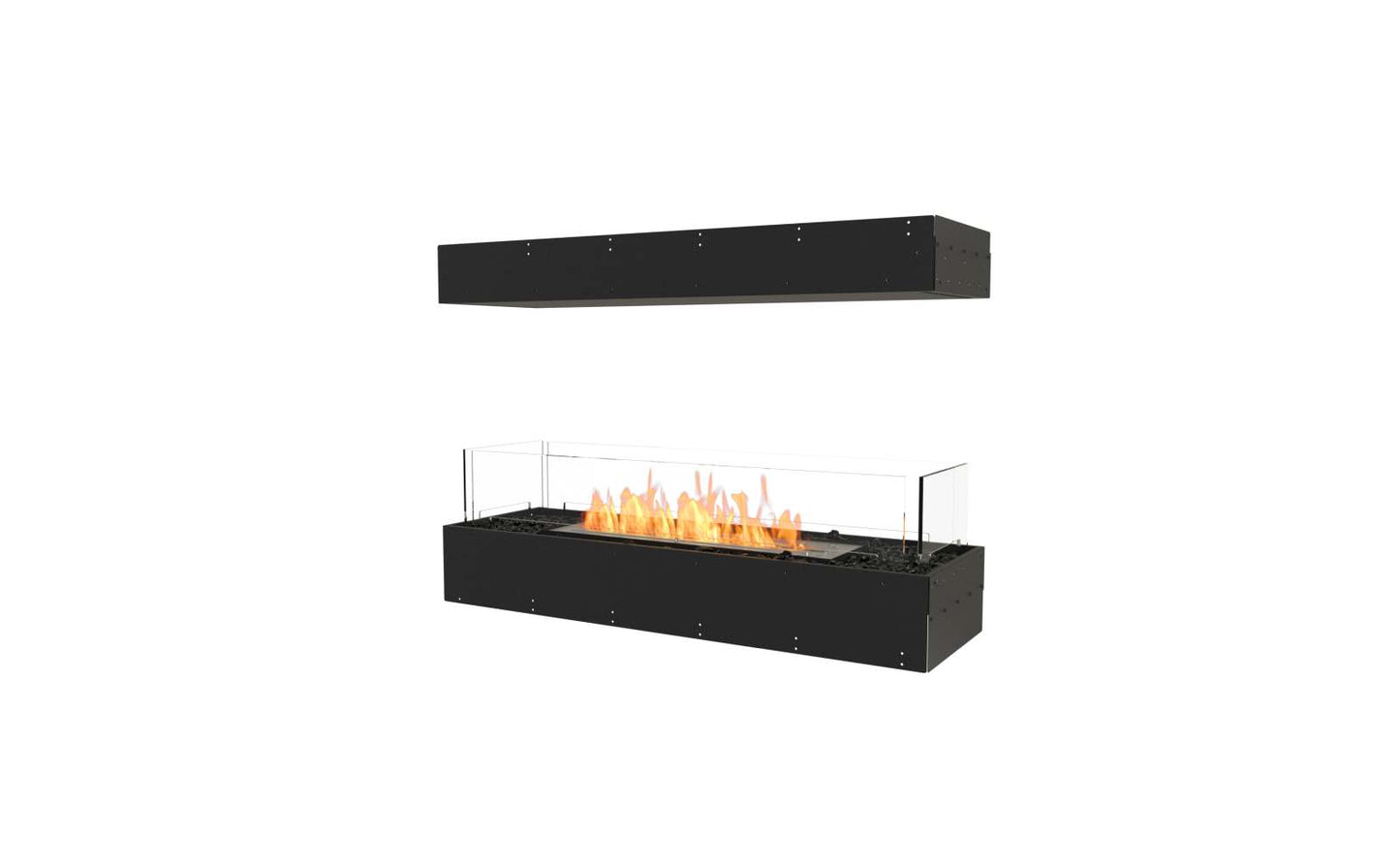

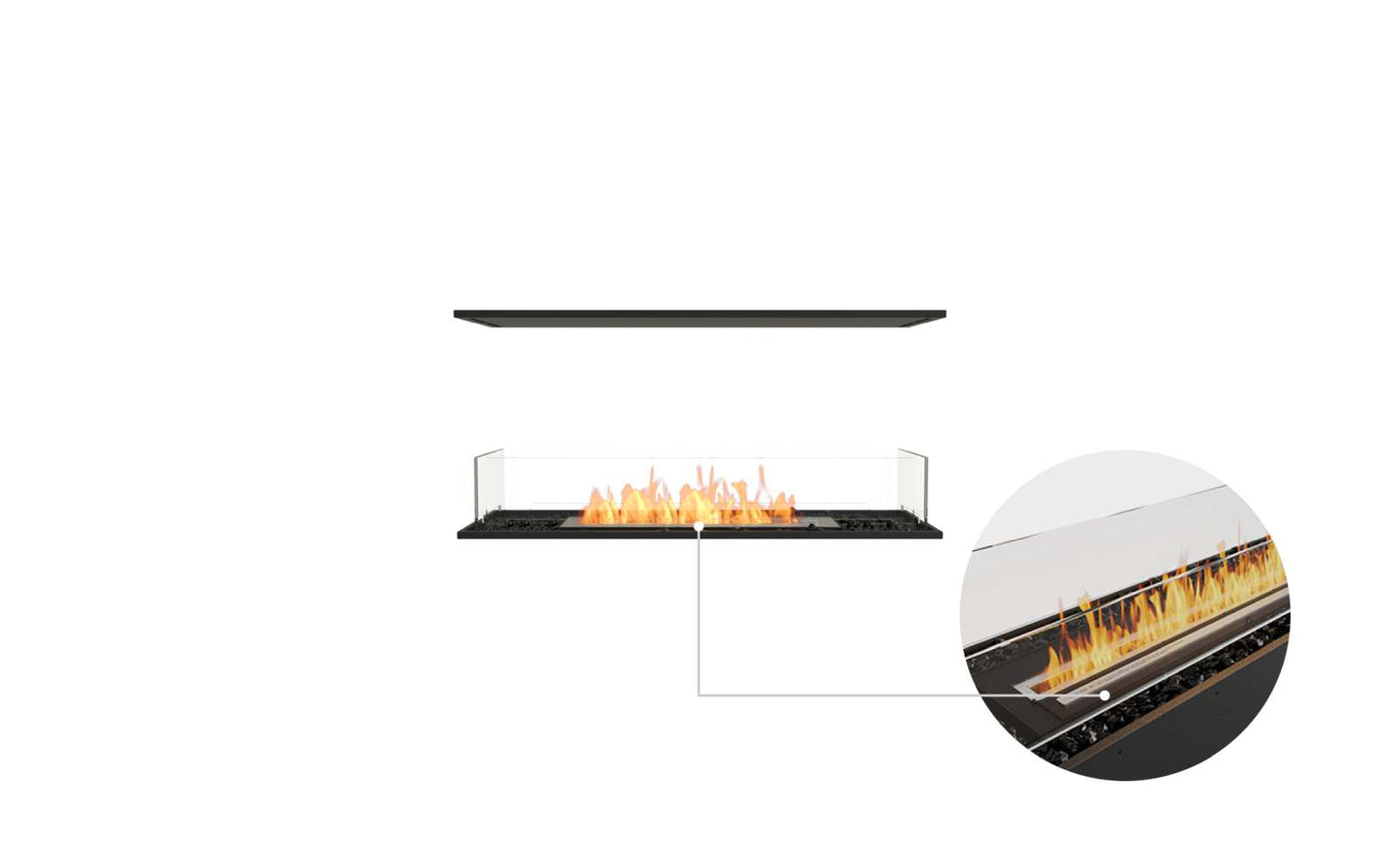

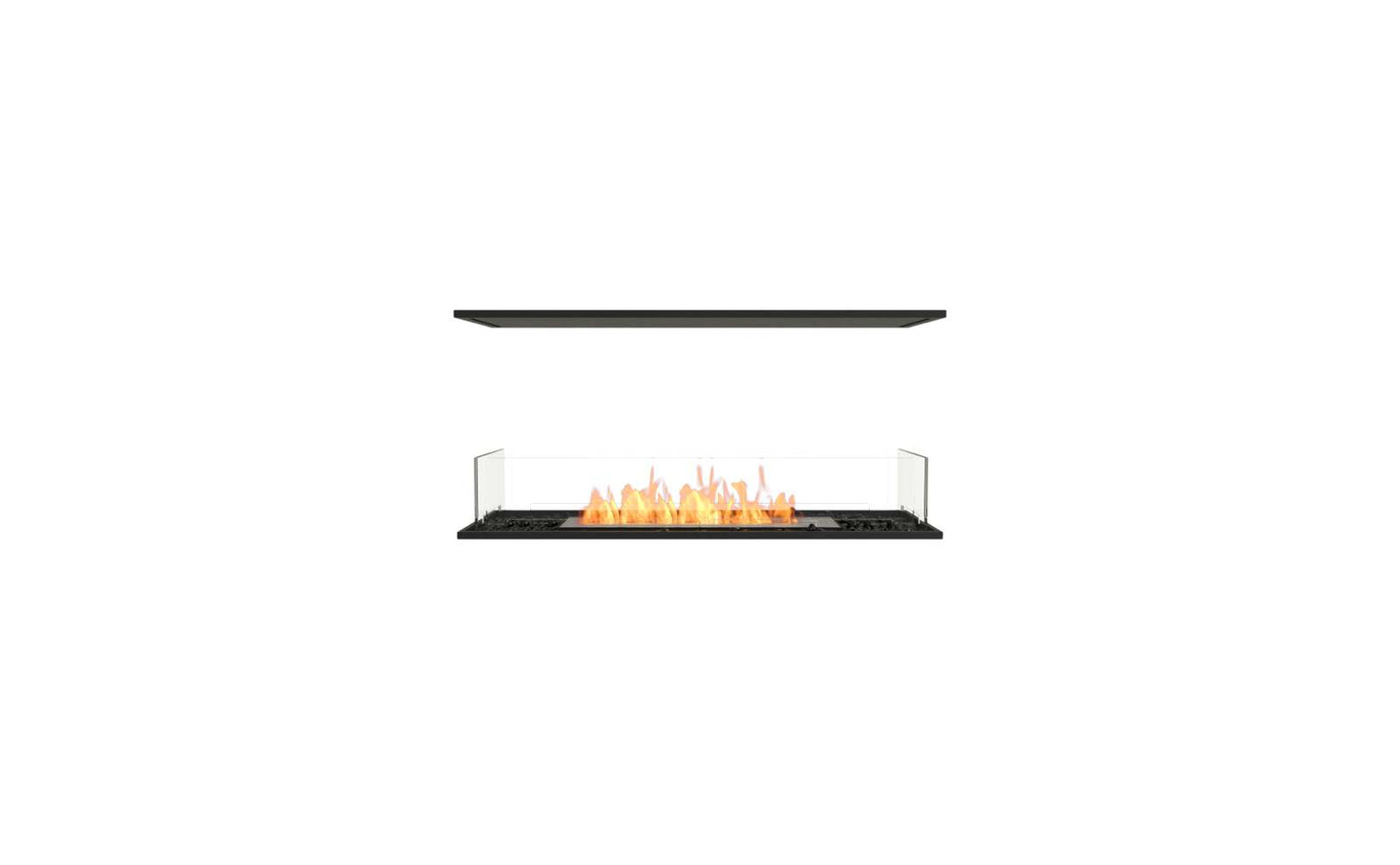

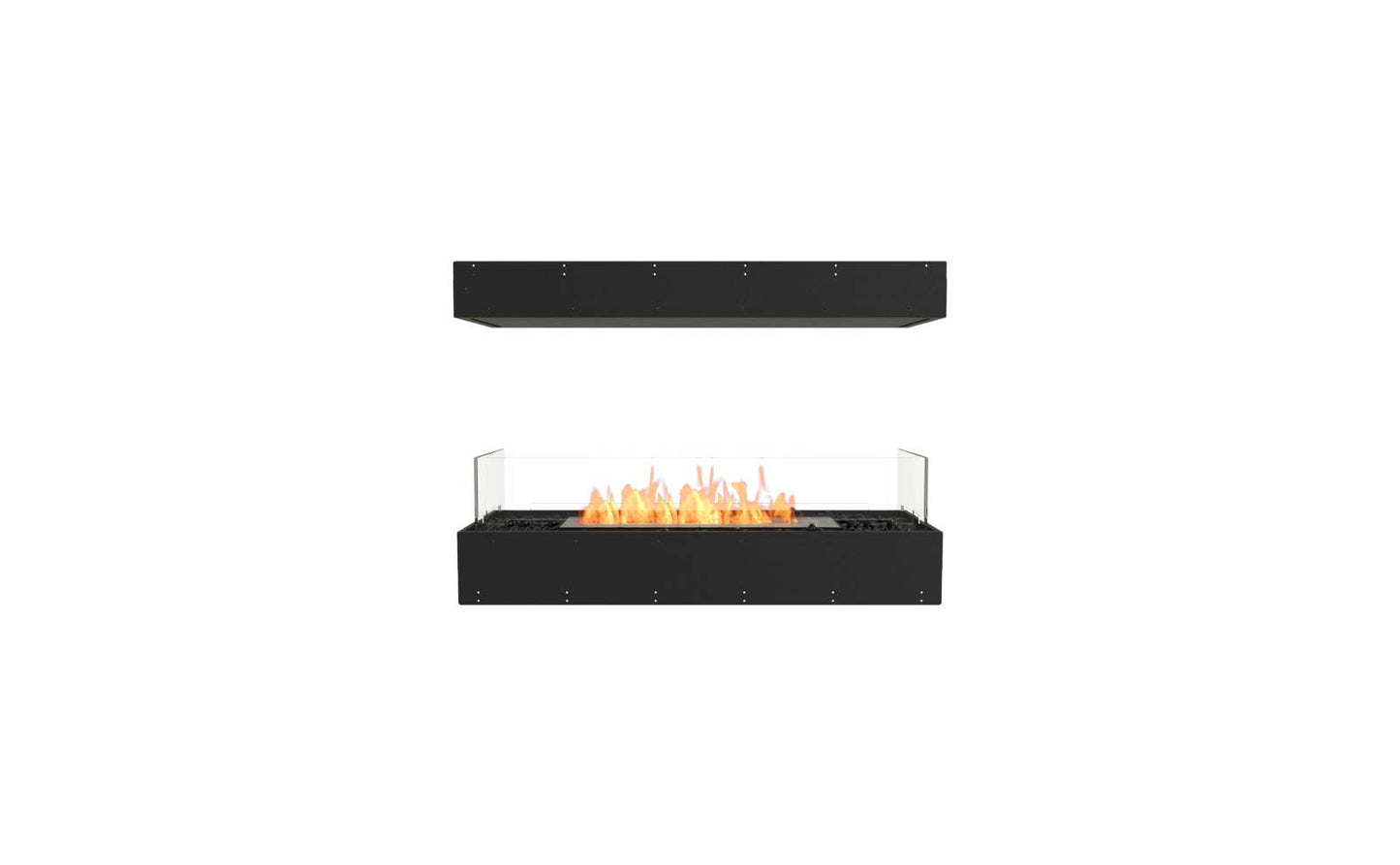

The zero-clearance Flex Island fireplace insert is designed as a room divider, with four open sides enabling the hypnotic flame to be viewed from the front, back, left and right sides. The UL Listed Flex Island models come with a base component that holds the burner and a top component that lines the bulkhead above. The clean lines and 'all flame' configuration of the Flex 42IL means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design. The XL700 burner delivers a captivating linear flame. With a 7L capacity, this elongated ethanol burner has the power to heat up to 50m2, making it ideal for residential and smaller commercial/hospitality spaces. Efficiency is a key feature of this burner, delivering up to 12 hours of heat generating flame from a single refill.
The clean lines and 'all flame' configuration means the entire viewing area is dedicated to the eye-catching flame.
Materials
Materials
Mild Steel & Toughened Glass

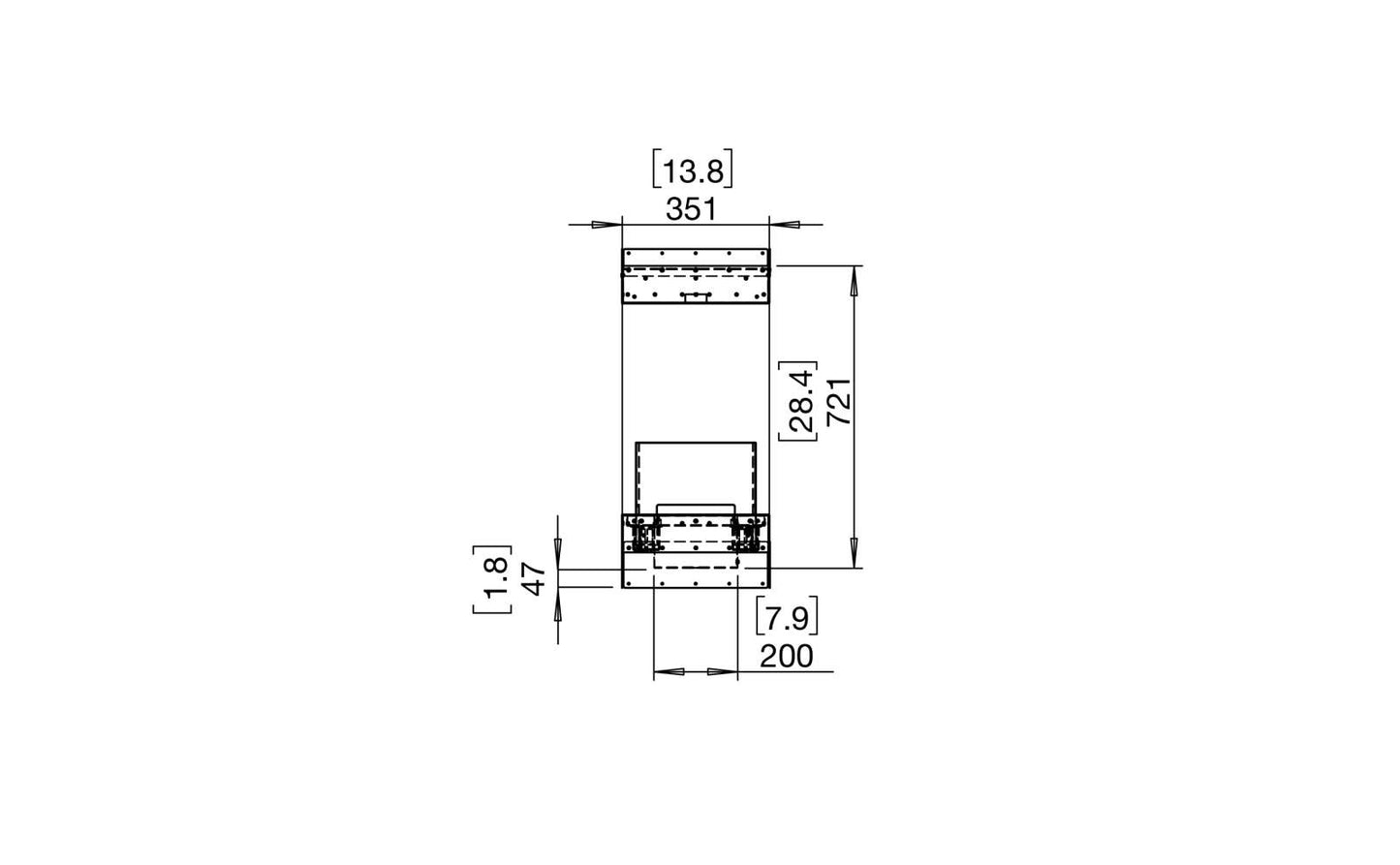

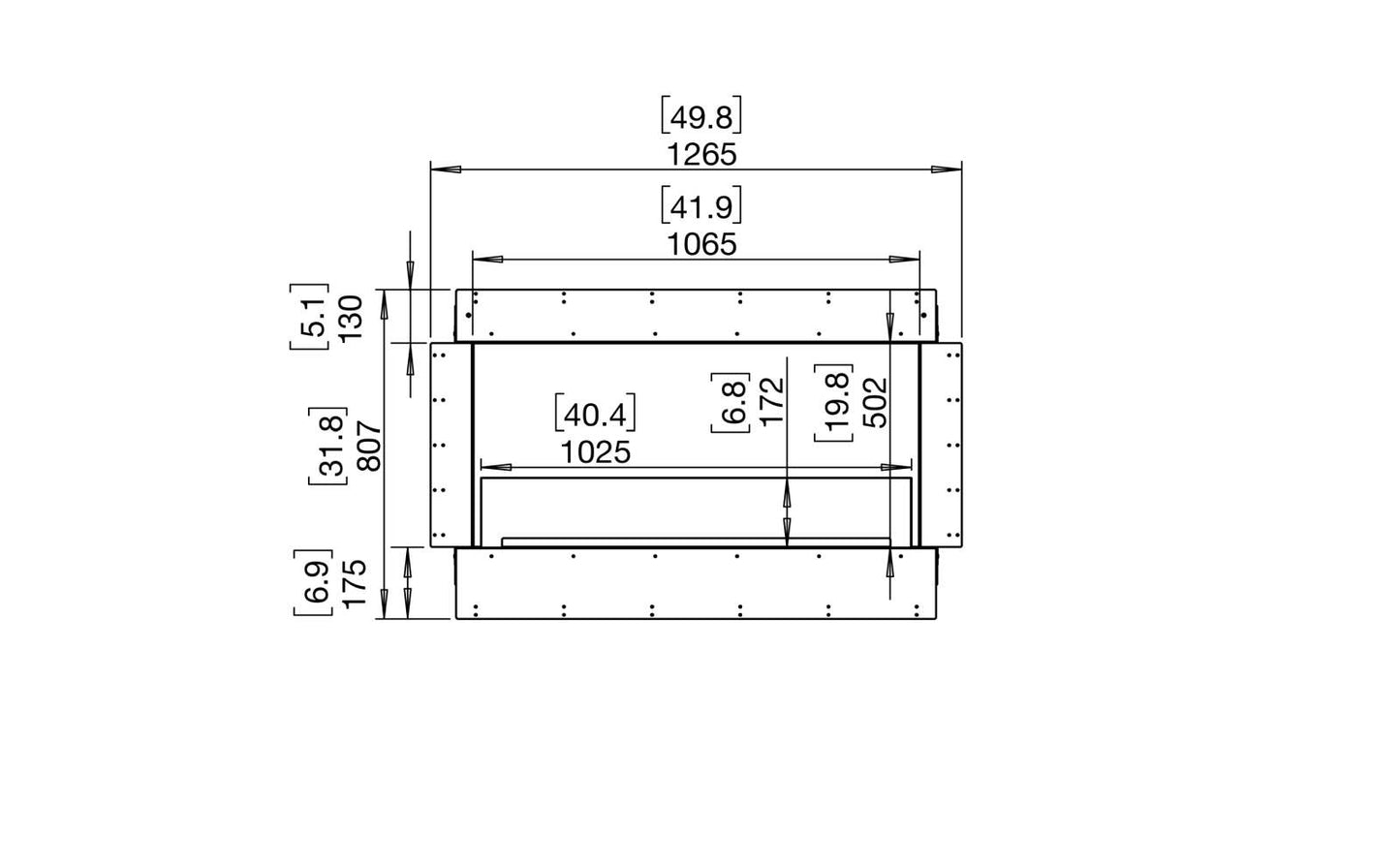

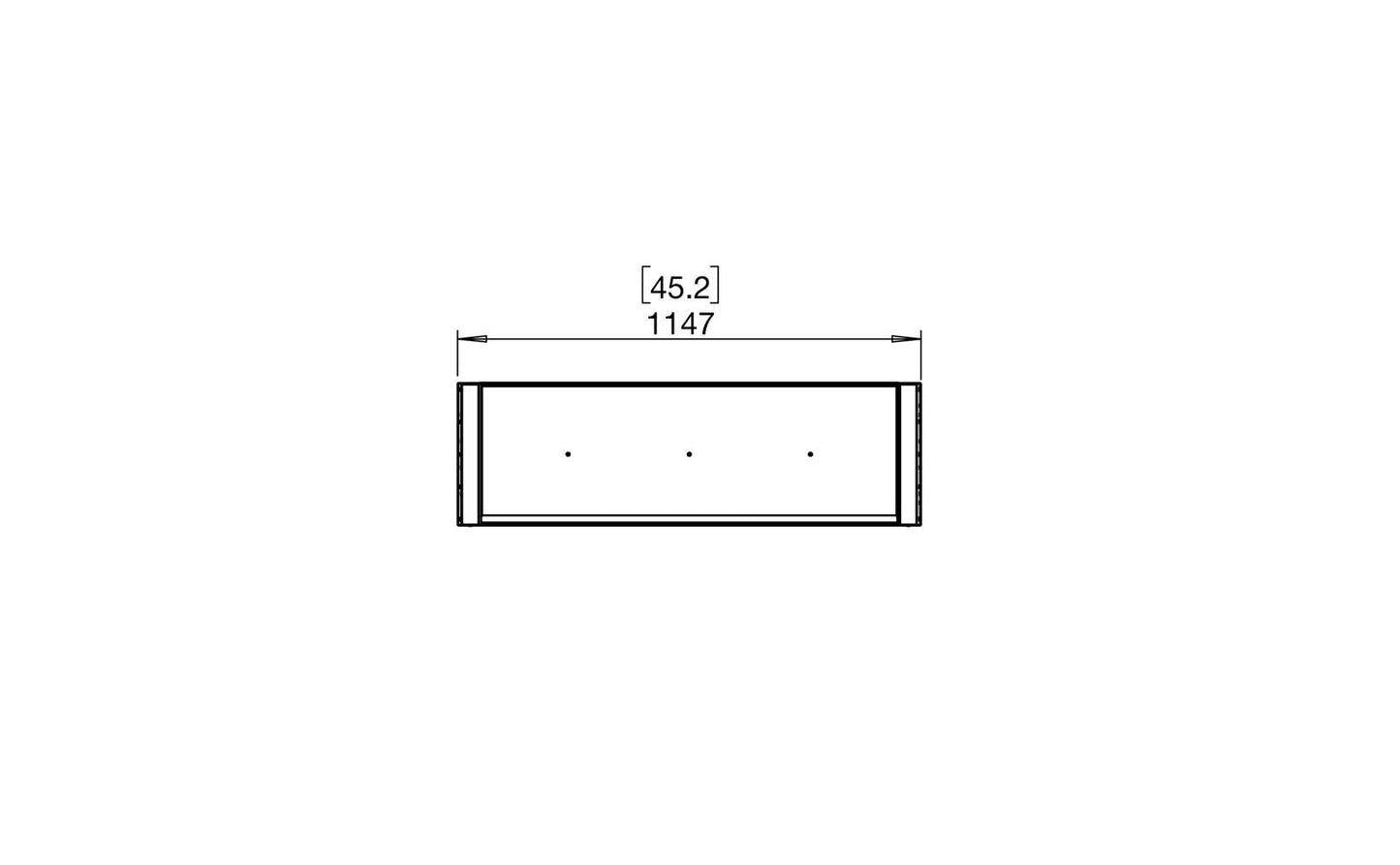

Dimensions & Basic Information
Dimensions & Basic Information
Width: 1265mm
Depth: 354mm
Height: 807mm
Product weight: 49.80kg
Burner weight: 9.2kg
Included burner: ESF.B.XL7
Included Accessories
Included Accessories
Fire Lighter
Lighting Rod
Jerry Can 5L
Black Glass Charcoal
XL Baffles
-
Volume Capacity
7 L
-
Heats on Average
50m²
-
Minimal Room Size
90m³
-
Thermal Output
13650 BTU/h
-
Burn Time
9-12h
-
Application
Indoor & Outdoor
-
Installation manual
download PDF file -
Fireplace Specification
download PDF file
Fireplace
Zero Clearance
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders, architects, interior designers, landscapers and homeowners.
Built to Last a Lifetime
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoor.
Quick and Easy Installation
Requiring virtually no assembly, Flex Fireplaces are designed to be placed into the desired location, safely secured into position, and operated immediately.
Glass Fire Screen/s
The toughened glass fire screen stabilises the flame in windy conditions. The Integrated windscreen sits flush behind the frame.
No Connections
Light up outdoor spaces with a soft, alluring glow - easily and efficiently, without cumbersome connections.
Colours
Available in a timeless black finish, Flex Fireplaces come with Stainless Steel or Black burners.
No Flue, No Chimney, No Vent
Fuelled by clean-burning e-NRG bioethanol, our burners produce a beautiful orange flame without any smoke, soot or ash.
Forefront of Fireplace Technology
Backed by 17 years of research and development, and third-party certification, each model in the Flex series features world-class safety and fuel ignition technologies.
Global Compliance
These models comply with existing standards in the USA, Europe, UK and Australia. O-TL listed to UL1370, EN 16647 BSI Certified and ACCC Safety Mandate compliant.
Common Q&A's
Do they heat?
EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood-burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU (15m2) - 20,000 BTU’s (65m2).
Are they easy to install?
EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
Burner Installation Guide
- Build burner cutout from non-combustible materials
- Insert Top Tray
- Drop in the burner
Why use an ethanol fireplace?
An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol
fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors.
- Produces a vibrant orange flame
- Efficiency over 90%
- Clean-burning. No smoke, no ash
- No gas, no electricity, no flue
- Quick and easy installation
How long will the fuel burn?
This is dependent on the burner and how it’s used, as mentioned, you are burning the vapour that evaporates from the liquid so the size of the mouth of the burner will affect this greatly. A larger more open mouth means more surface area for the ethanol fuel to evaporate from. This is also why most of our burners* will have some type of baffle or sliding baffle to increase burner efficiency; a smaller surface area for fuel to evaporate from means slower evaporation, lower heat output and better fuel efficiency. *Excluding AB3 and VB2 burners.
How do they work?
EcoSmart Ethanol Burners create a flame by burning the vapour that evaporates off of the bioethanol liquid fuel. The fuel is filled through a dedicated filling point where it flows into the fuel reservoir, which is where it is both stored and burned from; this can be seen when you open the lid on the burner.
What’s included when you purchase an EcoSmart ethanol burner?
- Jerry Can
- No Spill Nozzle
- Bottle Adaptor
- Lighter
- Lighting Rod
- Top Tray
- XL Baffles (XL Burners only)
- AB8 Efficiency Ring (AB8 Burner only)
- Extension Spout (AB3 Burner only)
Do they need power or a flue/chimney?
Ethanol fires do not require a chimney, vent, gas line, or electricity and can be installed virtually anywhere - indoors or outdoors. This means they do not require a specialised installer and can be moved from one area to another with relative ease.
How do I fill them?
With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.
- Step 1 - Remove the bottle nozzle cap and carefully insert into the filling point.
- Step 2 - Push and hold the green button.The nozzle will automatically stop filling once the reservoir is full.
- Step 3 - Replace the nozzle cap. To turn the burner off simply close the lid, this will starve the flame of oxygen and extinguish it.
-
