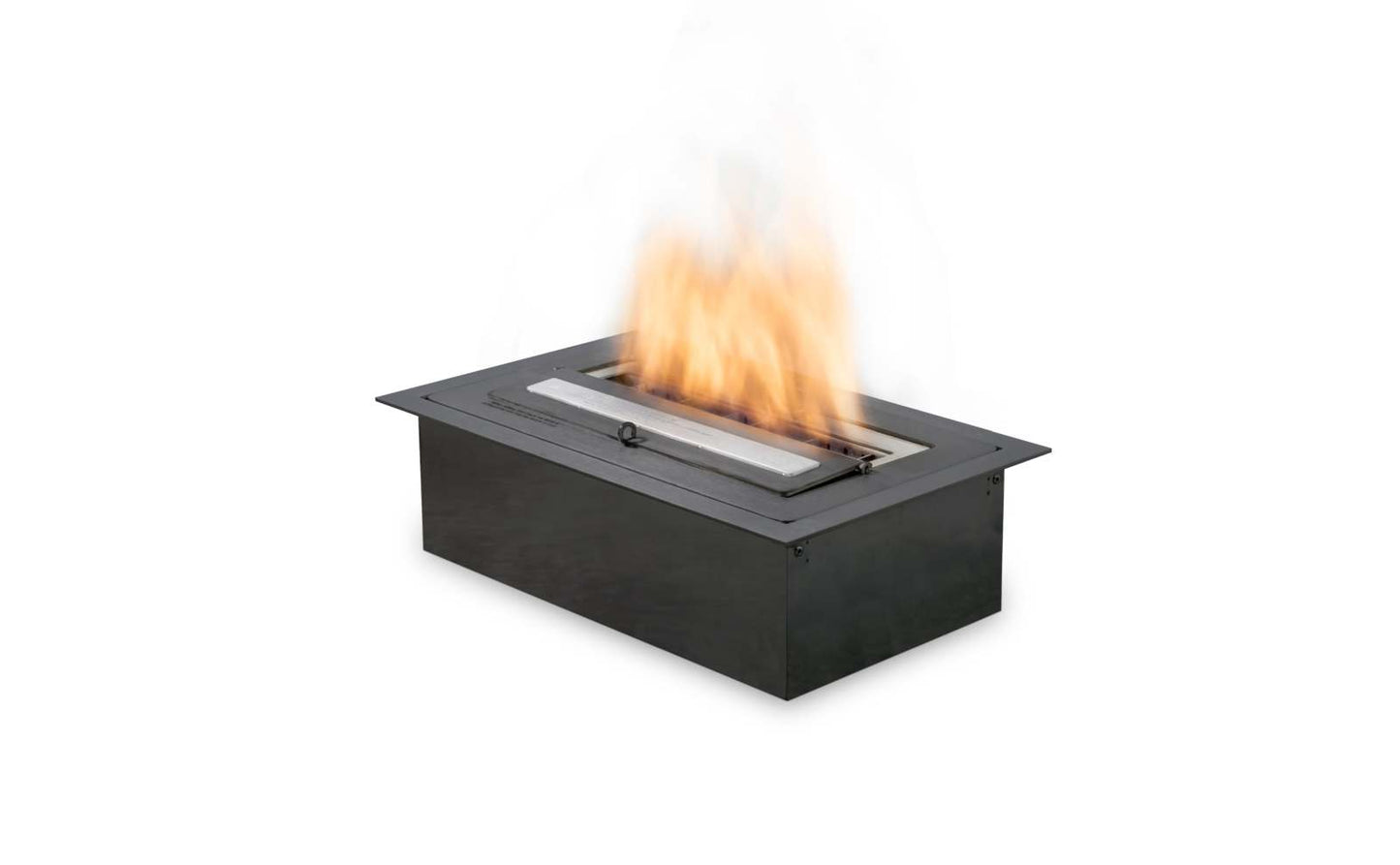

EcoSmart Fire - XS340 - Ethanol Burner - Black
EcoSmart Fire - XS340 - Ethanol Burner - Black
EcoSmart Fire - XS340 - Ethanol Burner - Black
A scaled back version of the XL ethanol burners – the ideal solution for tailor-made installations where space is at a premium. Don’t be fooled by its size – the XS340 holds 2.5L of environmentally-friendly bioethanol and burns for up to six hours.
Small sister of the XL burner series, but with a long-lasting burn time.
Materials
Materials
Stainless Steel Grade 304

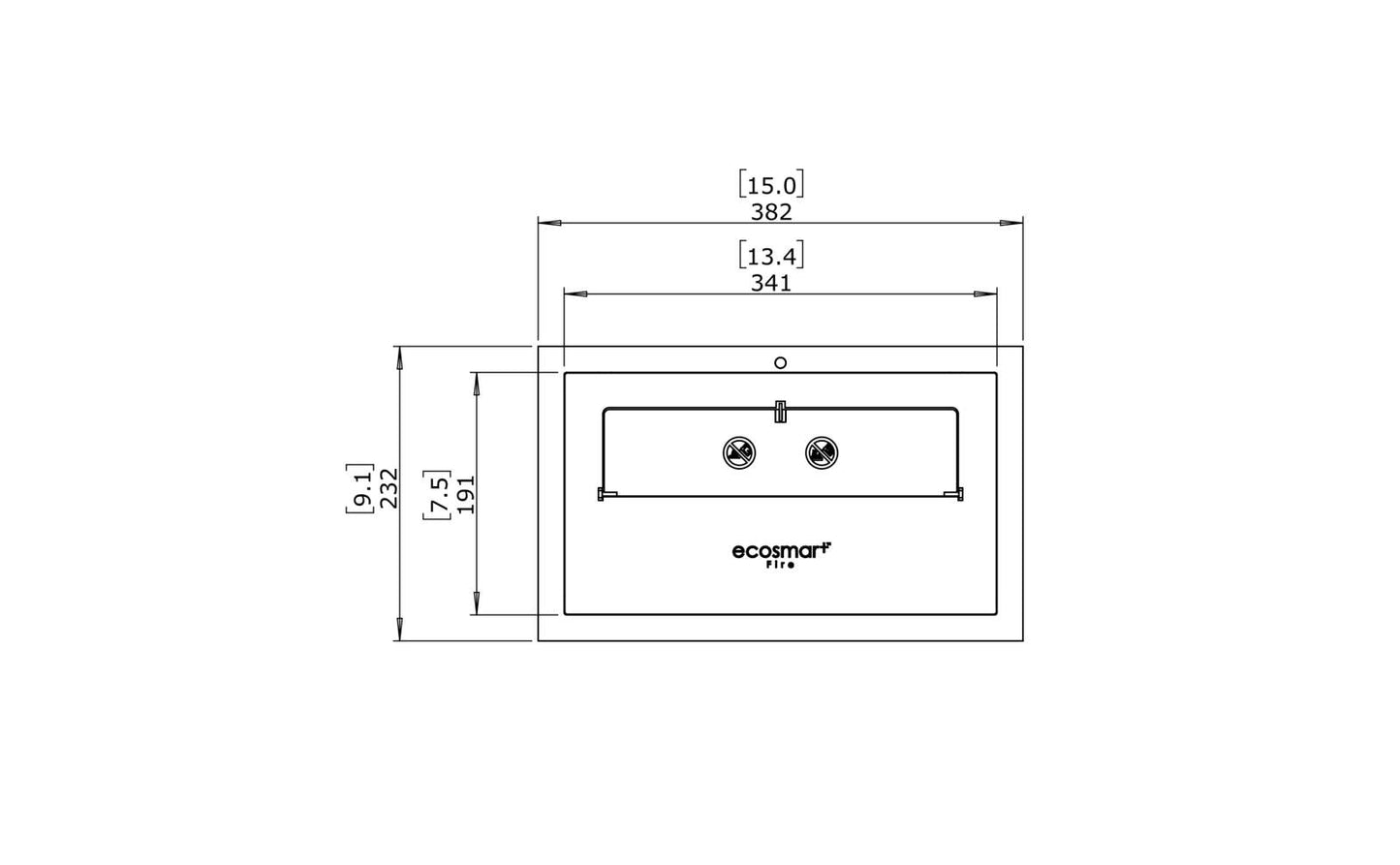

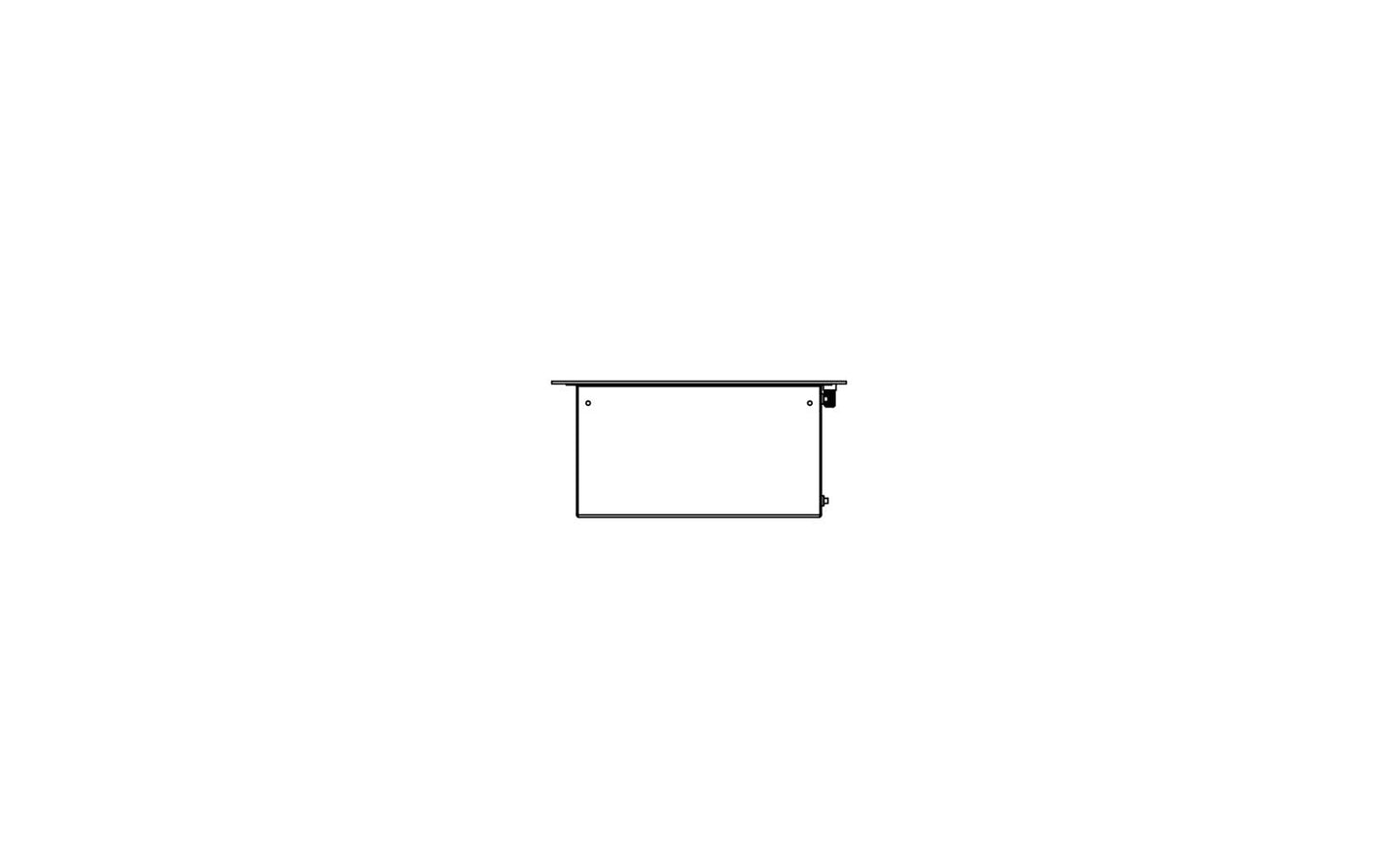

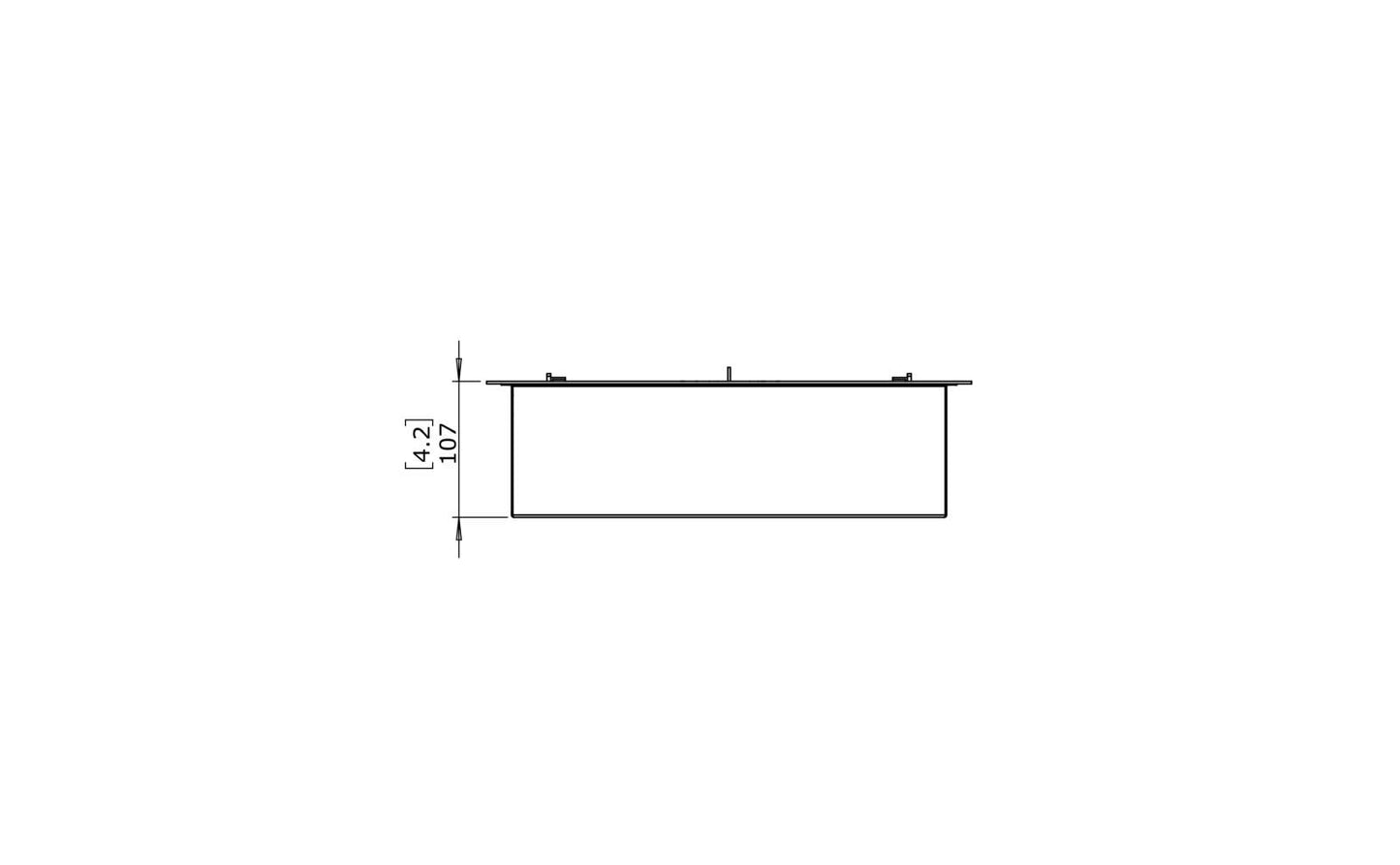

Dimensions & Basic Information
Dimensions & Basic Information
Width: 232mm
Depth: 107mm
Height:
Product weight: 5.4kg
Included Accessories
Included Accessories
Fire Lighter
Lighting Rod
Jerry Can 5L
XL Baffles
Bottle Adaptor
XS340 Top Tray
-
Volume Capacity
2.5 L
-
Heats on Average
20m²
-
Minimal Room Size
45m³
-
Thermal Output
8530 BTU/h
-
Burn Time
5h
-
Application
Indoor & Outdoor
-
Installation manual
download PDF file -
Burner Specification
download PDF file
Ethanol Burners - XL Series
Flip Lid Shut Off System
The series’ ‘flip lid’ shut-off system fits perfectly across the ignition zone to extinguish the flame and, when it is open, denies access to the separated filling point as a deterrent to filling the burner while it is in operation.
A reliable and safe extinguishing system courtesy of a special shut-off mechanism and precision measurements.
Flame Regulation
Purpose-designed XL Burner Baffles allow you to regulate and further stabilise the flame at the same time as increasing fuel efficiency of the burner.
No Flue, No Chimney, No Vent
Fuelled by clean-burning e-NRG bioethanol our burners produce a beautiful orange flame without any smoke, soot or ash.
The Perfect Fit
The streamlined design of the products synchronises effortlessly within award-winning architectural projects.
Dedicated Filling Point
A patented filling point is separated from the ignition zone and engineered so that the jerry can spout is fully supported prior to releasing the fuel supply. This eliminates the usual splash and spills that would otherwise occur when fuel is decanted into the burner while simultaneously reinforcing the maximum fill line within the burner.
Top Tray
The Top Tray protects against heat transference and aids in the collection of accidental spillage. To comply with EN 16647 the Top Tray must be installed before operating the burner.
High Quality
Crafted from high quality, 304 grade stainless steel, EcoSmart Fire burners are built to last a lifetime.
Colour
Available in Stainless Steel and Black.
Easy to Clean
Our bioethanol burners can be washed in hot water (or even put in your dishwasher), a key competitive difference.
Available in 5 sizes
The XL Series includes our longest burner XL1200 (10L Burner), followed by the XL900 (9L Burner), XL700 (7L Burner), XL500 (5L Burner) and the smallest in the series, XS340 (2.5L Burner).
Global Compliance
All burners are OMNI-Test Laboratories Inc. listed in accordance with UL1370-16 “Standard for Unvented Alcohol Fuel Burning Decorative Appliances” in the USA, are certified by BSI in accordance with EN16647, and comply with the ACCC Safety Mandate for Australia.
Common Q&A's
Do they heat?
EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood-burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU (15m2) - 20,000 BTU’s (65m2).
Are they easy to install?
EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
Burner Installation Guide
- Build burner cutout from non-combustible materials
- Insert Top Tray
- Drop in the burner
Why use an ethanol fireplace?
An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol
fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors.
- Produces a vibrant orange flame
- Efficiency over 90%
- Clean-burning. No smoke, no ash
- No gas, no electricity, no flue
- Quick and easy installation
How long will the fuel burn?
This is dependent on the burner and how it’s used, as mentioned, you are burning the vapour that evaporates from the liquid so the size of the mouth of the burner will affect this greatly. A larger more open mouth means more surface area for the ethanol fuel to evaporate from. This is also why most of our burners* will have some type of baffle or sliding baffle to increase burner efficiency; a smaller surface area for fuel to evaporate from means slower evaporation, lower heat output and better fuel efficiency. *Excluding AB3 and VB2 burners.
How do they work?
EcoSmart Ethanol Burners create a flame by burning the vapour that evaporates off of the bioethanol liquid fuel. The fuel is filled through a dedicated filling point where it flows into the fuel reservoir, which is where it is both stored and burned from; this can be seen when you open the lid on the burner.
What’s included when you purchase an EcoSmart ethanol burner?
- Jerry Can
- No Spill Nozzle
- Bottle Adaptor
- Lighter
- Lighting Rod
- Top Tray
- XL Baffles (XL Burners only)
- AB8 Efficiency Ring (AB8 Burner only)
- Extension Spout (AB3 Burner only)
Do they need power or a flue/chimney?
Ethanol fires do not require a chimney, vent, gas line, or electricity and can be installed virtually anywhere - indoors or outdoors. This means they do not require a specialised installer and can be moved from one area to another with relative ease.
How do I fill them?
With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.
- Step 1 - Remove the bottle nozzle cap and carefully insert into the filling point.
- Step 2 - Push and hold the green button.The nozzle will automatically stop filling once the reservoir is full.
- Step 3 - Replace the nozzle cap. To turn the burner off simply close the lid, this will starve the flame of oxygen and extinguish it.
-
