EcoSmart Fire - VB2 - Ethanol Burner - Black
EcoSmart Fire - VB2 - Ethanol Burner - Black
EcoSmart Fire - VB2 - Ethanol Burner - Black

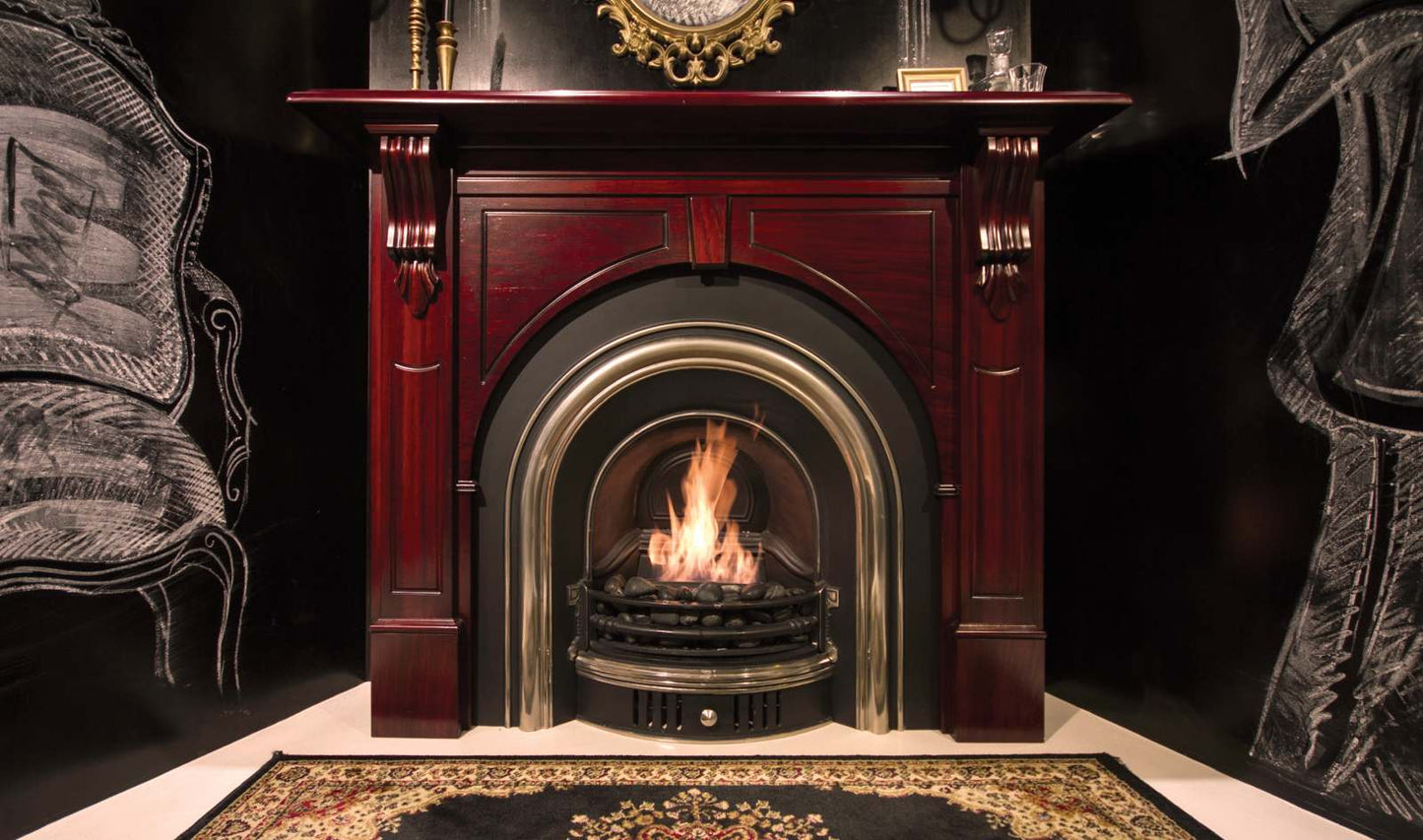

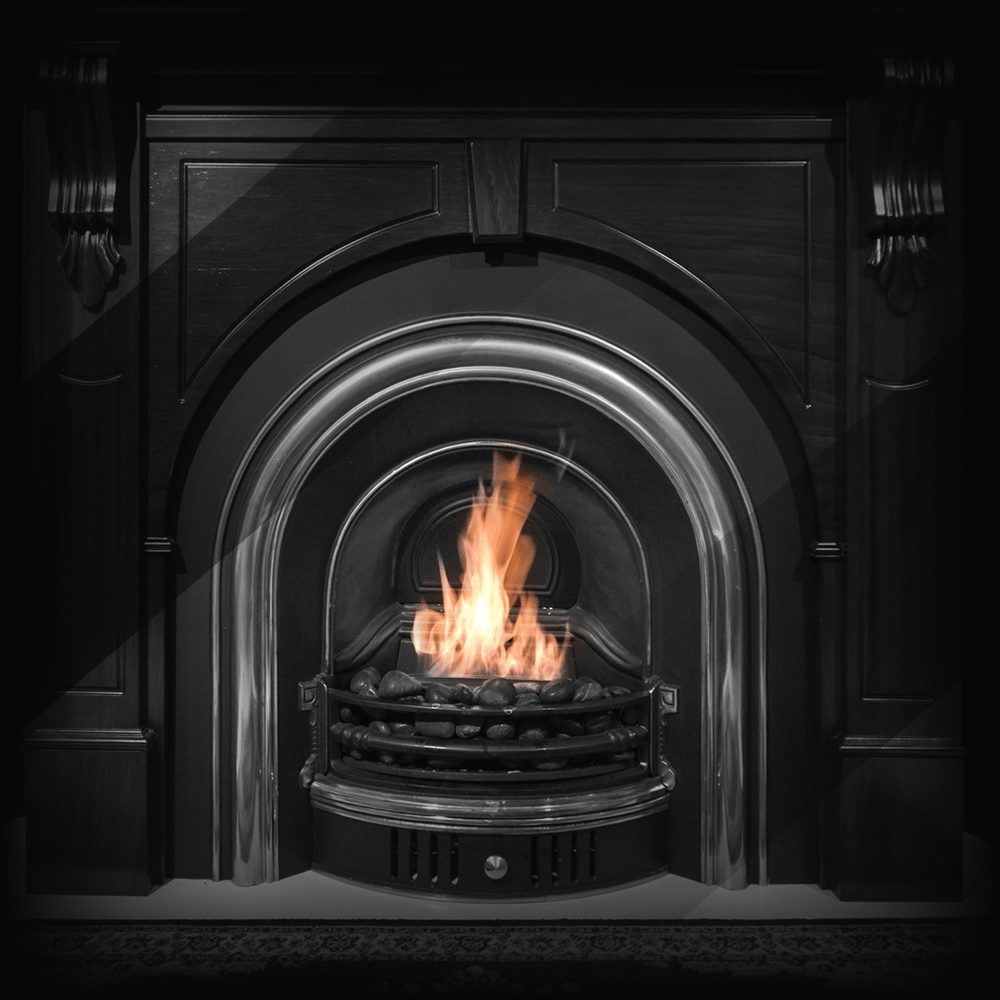

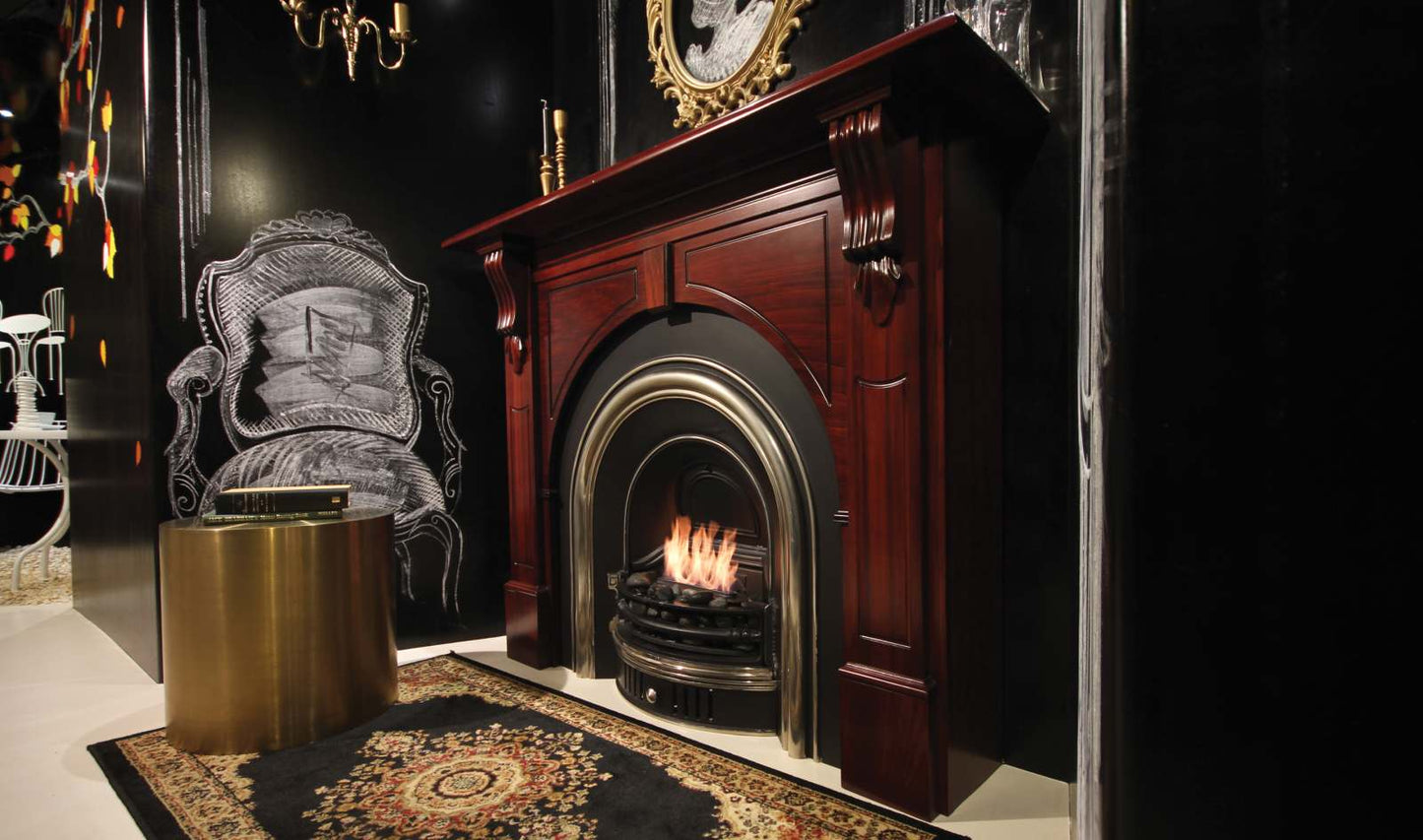

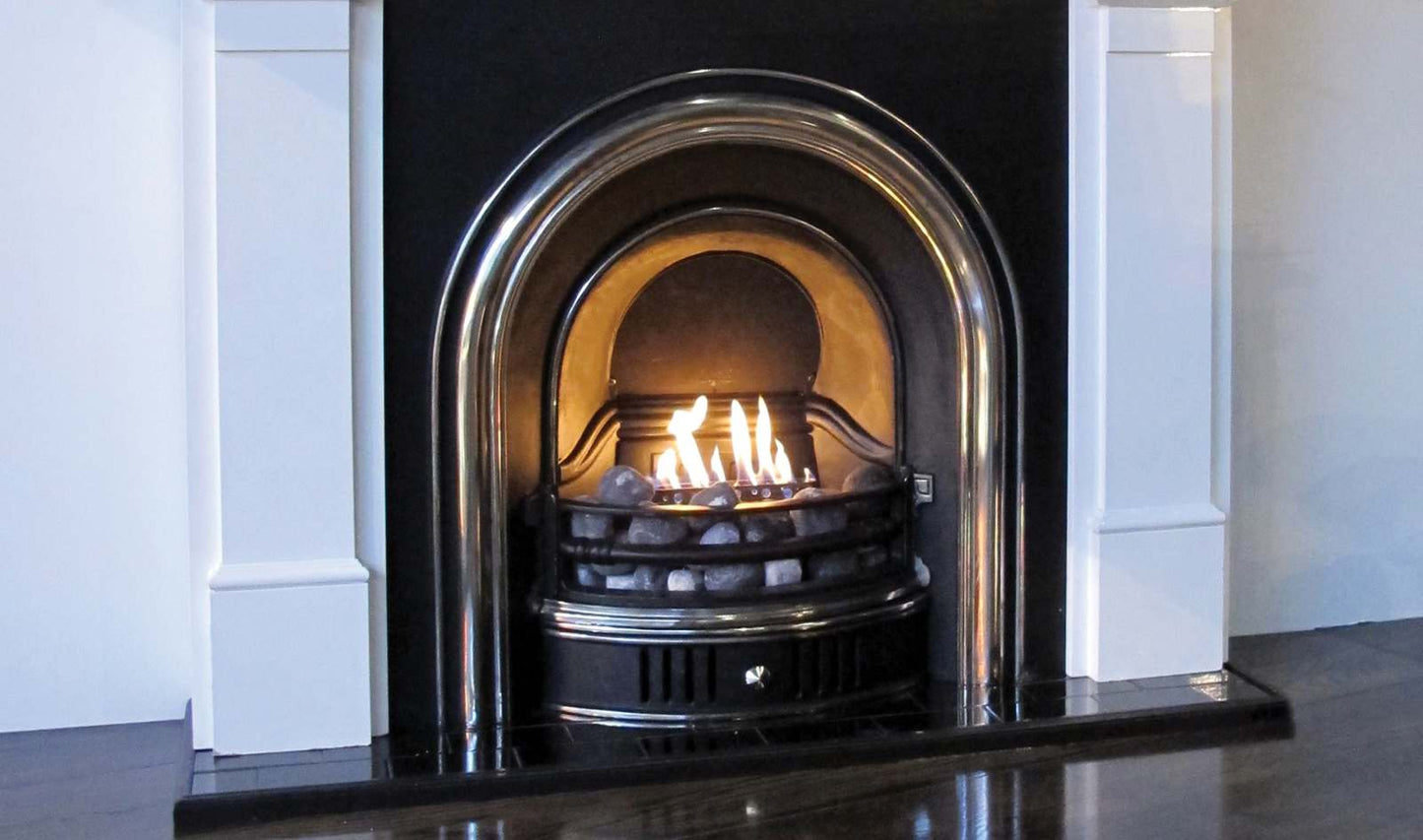

Whether an Edwardian, Federation, Art Deco or Art Nouveau fireplace, the VB2 has been designed to be easily integrated into existing fireplaces. The minimalist design mean you can easily convert an older style fireplace into a clean-burning bioethanol fire.
Transform traditional fireplaces with ease
Materials
Materials
Stainless Steel Grade 304

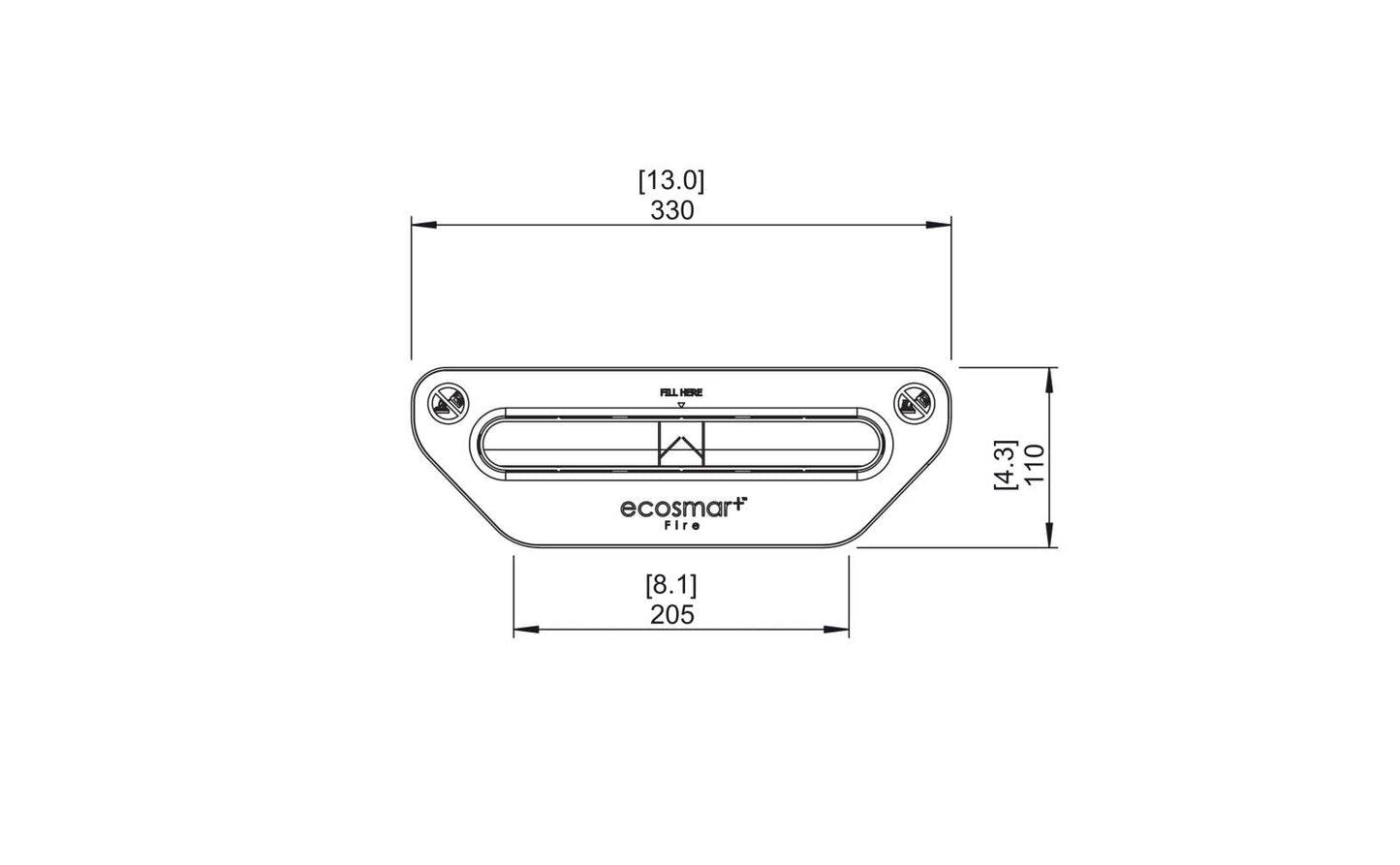

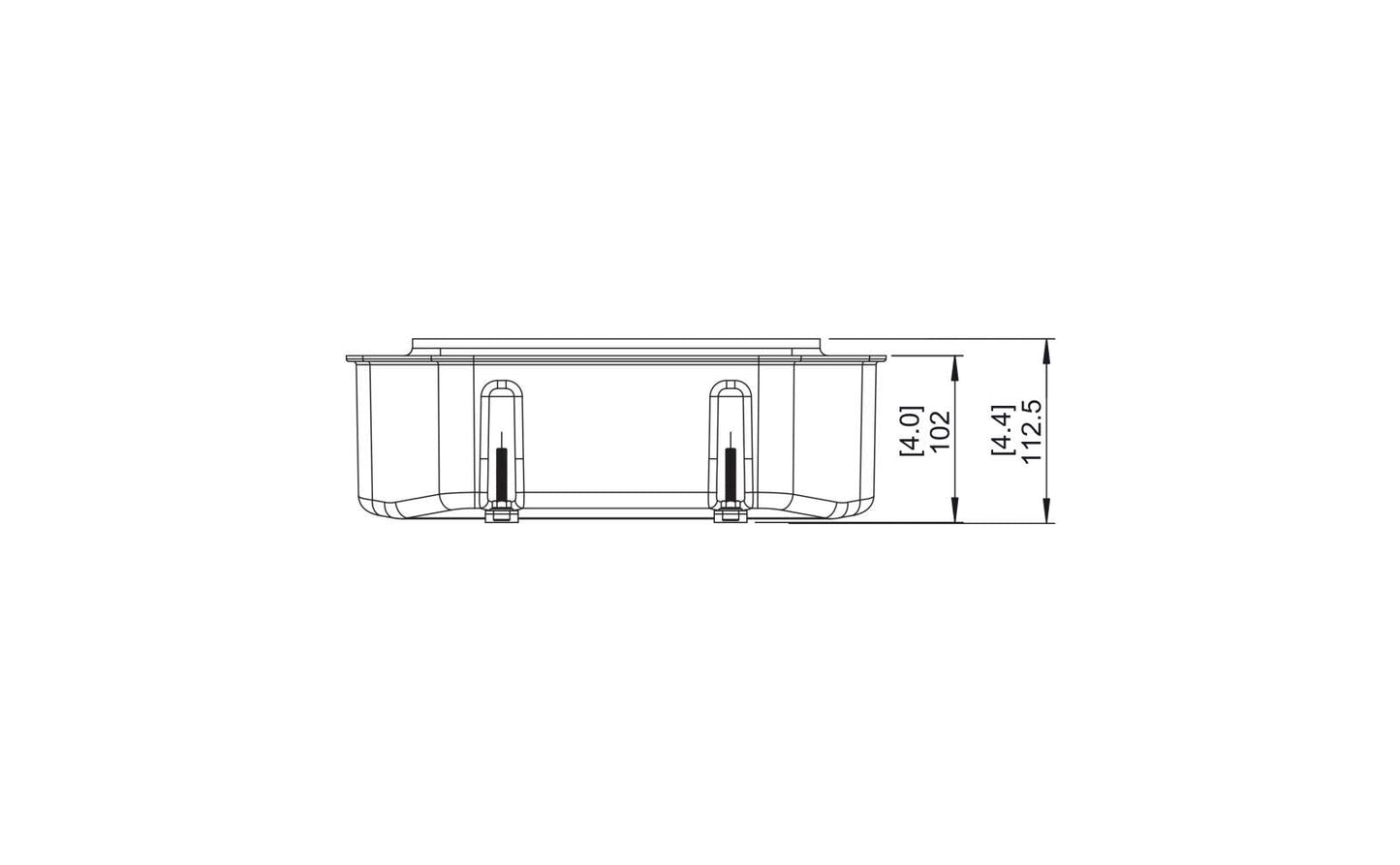

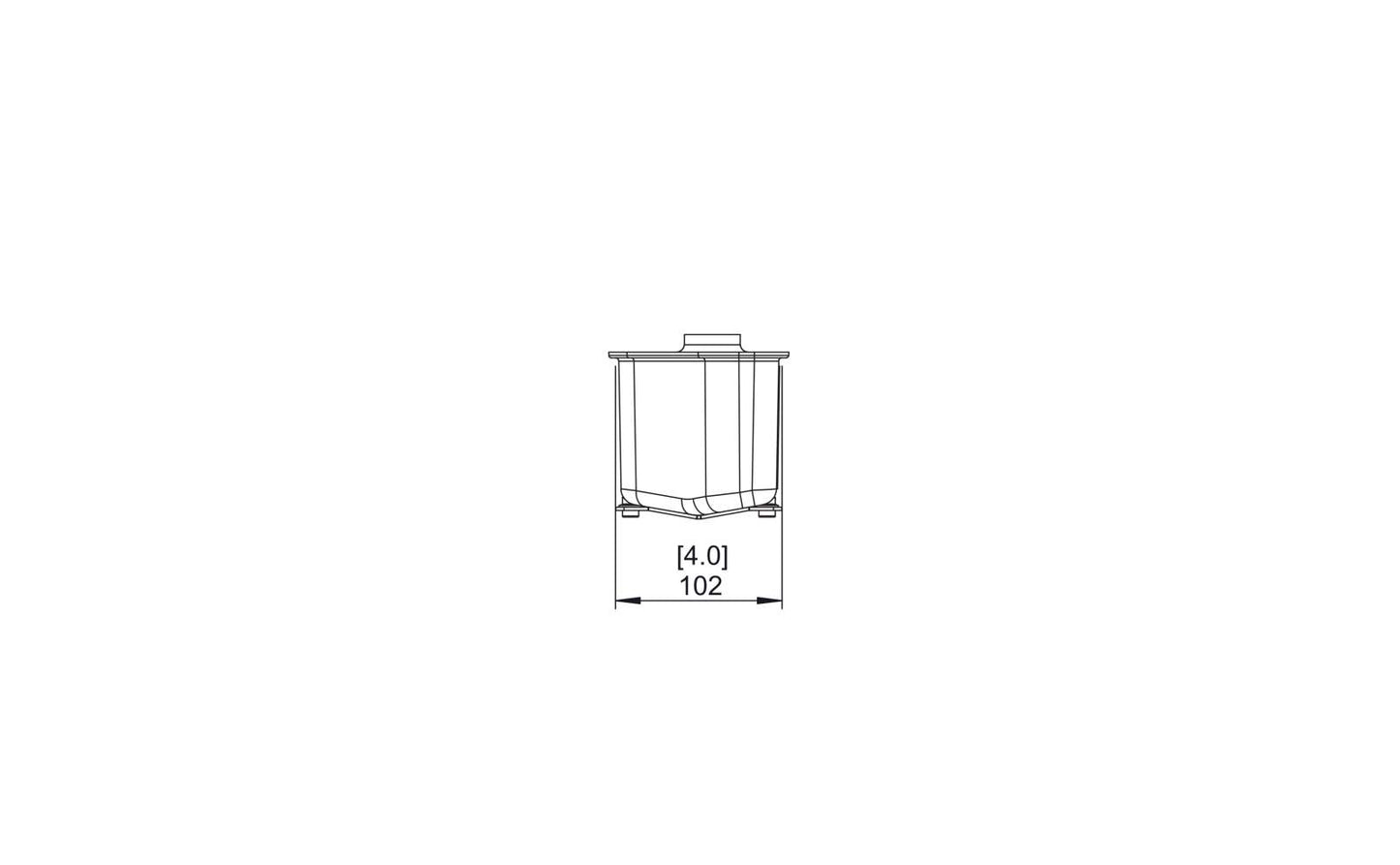

Dimensions & Basic Information
Dimensions & Basic Information
Width: 110mm
Depth: 113mm
Height:
Product weight: 1.8kg
Included Accessories
Included Accessories
Fire Lighter
Lighting Rod
Jerry Can 5L
Bottle Adaptor
-
Volume Capacity
2 L
-
Heats on Average
15m²
-
Minimal Room Size
45m³
-
Thermal Output
6180 BTU/h
-
Burn Time
6h
-
Application
Indoor
-
Installation manual
download PDF file -
Burner Specification
download PDF file
Ethanol Burners - VB Series
Accessory Exclusion Zone

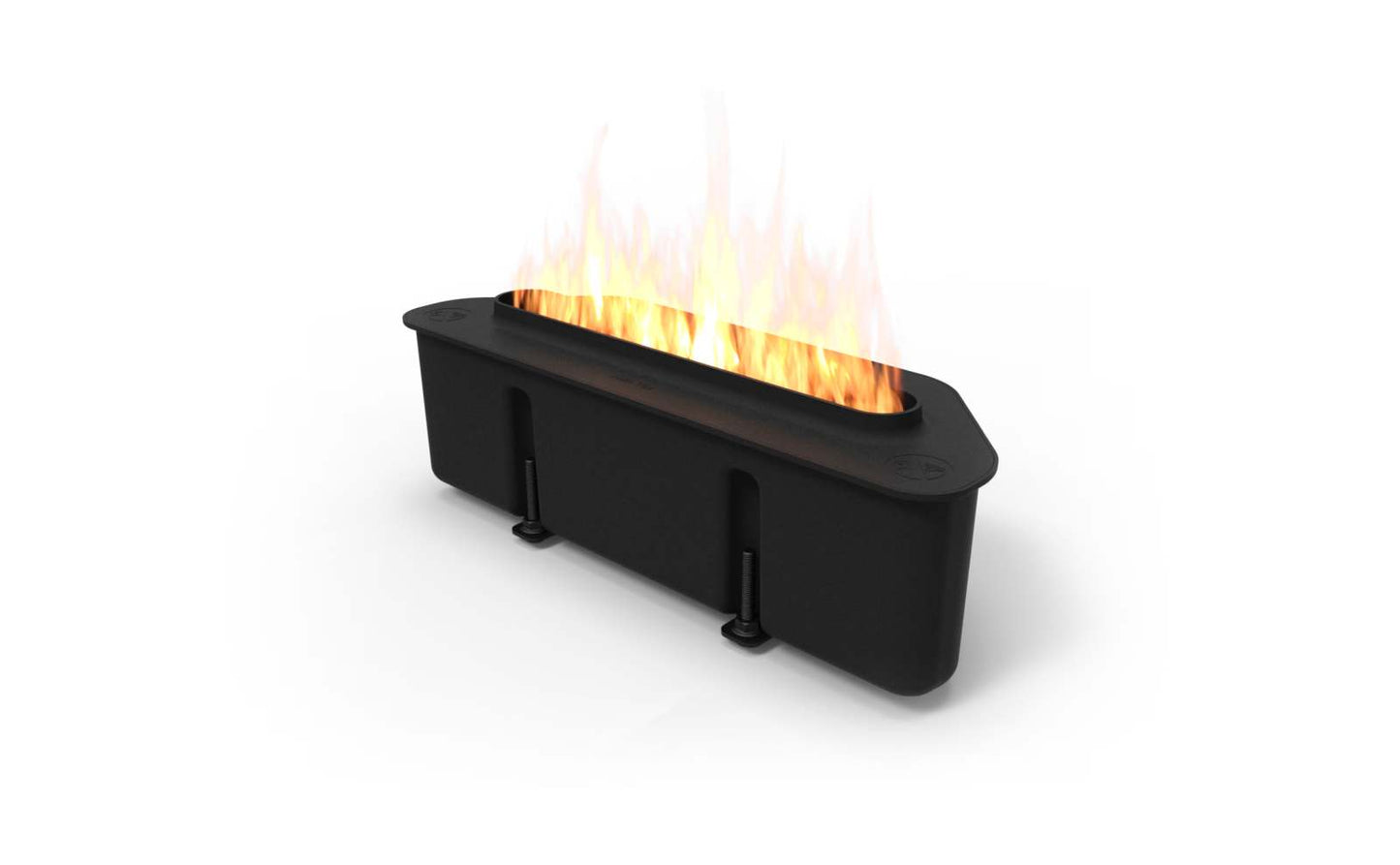

Elevated lip around the burner mouth that stops accessories from sitting over the flame or blocking the shut off procedure. This raised lip includes air holes that allows air to flow smoothly around the fuel to achieve a better flame within the setting.
Height Adjustable
Adjustable feet level and lift the burner to the best setting depending on the depth of the grill it’s being placed within.
Fuel Efficiency
The VB2 burner has several layers of internal features that increases its efficiency including vertical baffles, aspiration vents and dense padding - all of which is built to last a lifetime.
Dedicated Filling Point
A designated, inbuilt filling point to ensure the same procedures can be followed to decrease the likelihood of overfilling.
Easy Installation
The VB2 burner has several layers of internal features that increases its efficiency including vertical baffles, aspiration vents and dense padding - all of which is built to last a lifetime.
Dual Purpose Lid
A simple lid is used to extinguish the flame and cover the burner opening when it is not in use. This prevents dust from falling into the tank, leaving it clean and safe for use year round.
Colour
Available in Black. VB2 is finished in Black Ceramic Coating, designed to blend with existing fireplaces.
Clean Burning
Warm your home, not the planet. Powered by e-NRG bioethanol, a sustainable plant-based fuel, VB2 produces no smoke, no soot, and no mess.
No Flue, No Chimney, No Vent
No vent or flue required, which stops heat from escaping. Increase heat output by closing the dampener or sealing off the flue with a metal plate.
Available in 1 Size
The VB2 holds 2 Litres of environmentally-friendly e-NRG bioethanol fuel, providing a flame that burns for up to 6 hours.
Common Q&A's
Do they heat?
EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood-burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU (15m2) - 20,000 BTU’s (65m2).
Are they easy to install?
EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
Burner Installation Guide
- Build burner cutout from non-combustible materials
- Insert Top Tray
- Drop in the burner
Why use an ethanol fireplace?
An ethanol fireplace is an eco-friendly and cost-effective alternative to gas fireplaces and wood burning fireplaces. Enjoy the warmth and aesthetic benefits of a traditional fireplace without the smoke, soot or ash in your home. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol
fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors.
- Produces a vibrant orange flame
- Efficiency over 90%
- Clean-burning. No smoke, no ash
- No gas, no electricity, no flue
- Quick and easy installation
How long will the fuel burn?
This is dependent on the burner and how it’s used, as mentioned, you are burning the vapour that evaporates from the liquid so the size of the mouth of the burner will affect this greatly. A larger more open mouth means more surface area for the ethanol fuel to evaporate from. This is also why most of our burners* will have some type of baffle or sliding baffle to increase burner efficiency; a smaller surface area for fuel to evaporate from means slower evaporation, lower heat output and better fuel efficiency. *Excluding AB3 and VB2 burners.
How do they work?
EcoSmart Ethanol Burners create a flame by burning the vapour that evaporates off of the bioethanol liquid fuel. The fuel is filled through a dedicated filling point where it flows into the fuel reservoir, which is where it is both stored and burned from; this can be seen when you open the lid on the burner.
What’s included when you purchase an EcoSmart ethanol burner?
- Jerry Can
- No Spill Nozzle
- Bottle Adaptor
- Lighter
- Lighting Rod
- Top Tray
- XL Baffles (XL Burners only)
- AB8 Efficiency Ring (AB8 Burner only)
- Extension Spout (AB3 Burner only)
Do they need power or a flue/chimney?
Ethanol fires do not require a chimney, vent, gas line, or electricity and can be installed virtually anywhere - indoors or outdoors. This means they do not require a specialised installer and can be moved from one area to another with relative ease.
How do I fill them?
With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.
- Step 1 - Remove the bottle nozzle cap and carefully insert into the filling point.
- Step 2 - Push and hold the green button.The nozzle will automatically stop filling once the reservoir is full.
- Step 3 - Replace the nozzle cap. To turn the burner off simply close the lid, this will starve the flame of oxygen and extinguish it.
-
